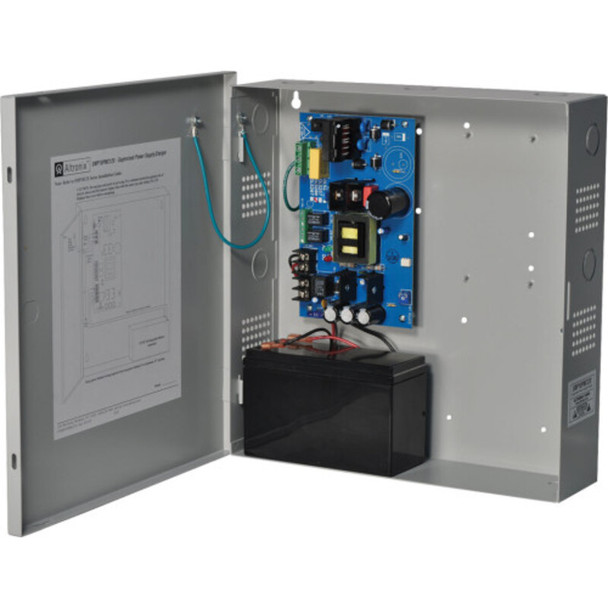

Altronix SMP10PMC12X Power Supply Charger - Single Output

Brand: Altronix
Part Number: SMP10PMC12X
Write a Review
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty


Altronix SMP10PMC12X Power Supply Charger - Single Output

SMP10PMC12X supervised power supply/charger converts a 115VAC 50/60Hz input into a regulated 12VDC output @ 10A continuous supply current.

Key Features:

  • Input
    • Input 115VAC, 50/60Hz, 1.45A.
  • Output
    • 12VDC output.
    • 10A supply current.
    • Filtered and electronically regulated outputs.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Zero voltage drop when switching over to battery backup.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Battery presence and low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 61 BTU/Hr.
    • System AC input VA requirement: 166.75VA.


All Security BrandsClose

Additional Information

Accessory Type:
Power Supply
Life-time Warranty
