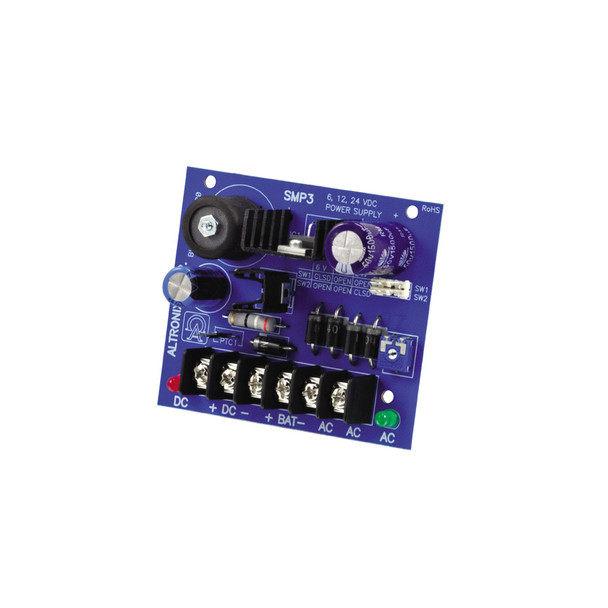

Altronix SMP3 Single Output Power Supply Charger Board

Altronix SMP3 Single Output Power Supply Charger Board

Altronix SMP3 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Key Features Of Altronix SMP3

• Input

  • 16VAC to 28VAC.

• Output

  • 6VDC, 12VDC or 24VDC selectable output.
  • 2.5A continuous supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • Battery short circuit protection (circuit breaker).

• Visual Indicators

  • AC input and DC output LED indicators.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

    • BTU/Hr (approx.):

      • 6VDC: 8 BTU/Hr.
      • 12VDC: 15 BTU/Hr.
      • 24VDC: 31 BTU/Hr.

  • System AC input VA requirement:

    • 6VDC/12VDC: 55.2VA.
    • 24VDC: 115VA.

• Features

  • Extremely compact design.
  • Includes battery leads.
  • Snap Track compatible (order Altronix model number ST3).
