Altronix SMP5PM Power Supply Charger - Single Output

(No reviews yet) Write a Review
SKU:
SMP5PM
MSRP: $86.00
$67.37
Technical Support
Lifetime Warranty

Description

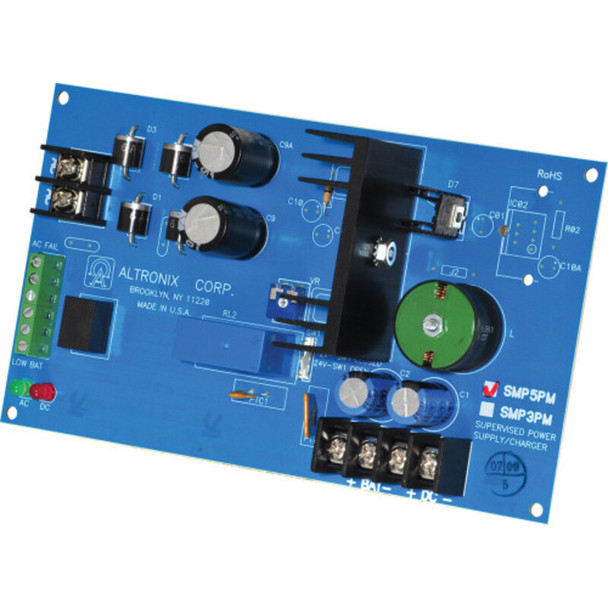

Altronix SMP5PM Power Supply Charger - Single Output

SMP5PM supervised power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. This unit has a wide range of applications for access control,security and CCTV system accessories that require additional power.

Key Features:

  • Input
    • 12VDC applications use T2428100.
    • 24VDC applications use T2428175.
  • Output
    • 12VDC or 24VDC selectable output.
    • 4A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Battery short circuit protection (circuit breaker).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 12VDC: 25 BTU/Hr.
        • 24VDC: 49 BTU/Hr.
      • System AC input VA requirement:
        • 12VDC: 115VA.
        • 24VDC: 184VA.
  • Features
    • Includes battery leads.

Downloads

View AllClose

Additional Information

Accessory Type:
Power Supply
Warranty:
Life-time Warranty
