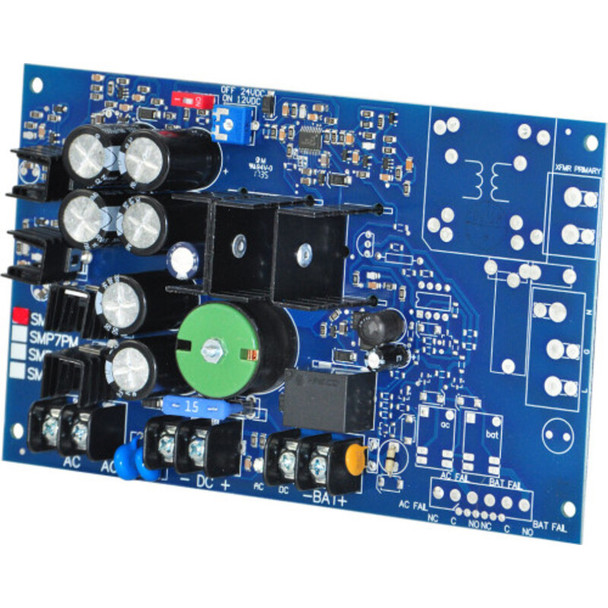

Altronix SMP7 Power Supply Charger - Single Output

Altronix SMP7 Power Supply Charger - Single Output

SMP7 power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Key Features:

• Input

  • Input 28VAC.

• Output

  • 12VDC or 24VDC selectable output.
  • 6A supply current.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Zero voltage drop when switching over to battery backup.

• Visual Indicators

  • AC input and DC output LED indicators.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

  • BTU/Hr (approx.):

    • 12VDC: 37 BTU/Hr.
    • 24VDC: 75 BTU/Hr.
  • System AC input VA requirement: 184VA.
