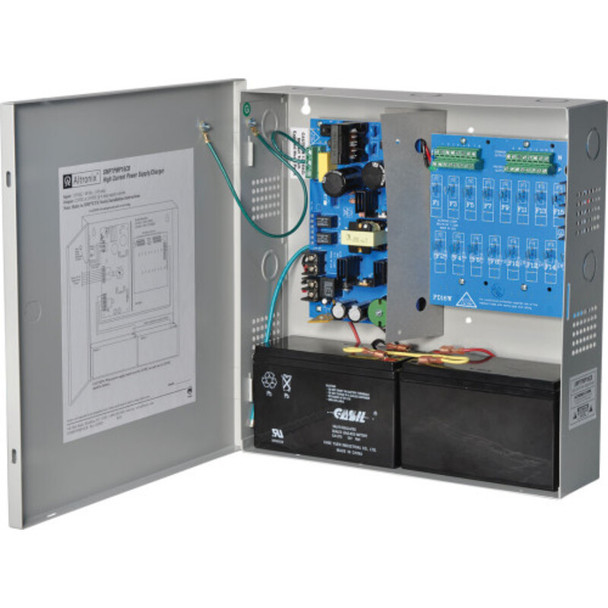

Altronix SMP7PMP16CB Power Supply Charger - 16 PTC Outputs

(No reviews yet) Write a Review
SKU:
SMP7PMP16CB
  • Altronix SMP7PMP16CB Power Supply Charger - 16 PTC Outputs
  • Altronix SMP7PMP16CB Power Supply Charger - 16 PTC Outputs
$212.95
Technical Support
Lifetime Warranty

Description

Altronix SMP7PMP16CB Power Supply Charger - 16 PTC Outputs

SMP7PMP16CB is a multi-output power supply/charger that converts a 115VAC/60Hz input into sixteen (16) PTC protected 12VDC or 24VDC outputs.

Key Features:

  • Input
    • Input 115VAC, 60Hz, 2.5A.
  • Output
    • 12VDC or 24VDC selectable output.
    • 6A supply current.
    • Sixteen (16) PTC protected outputs (auto-resettable).
    • Outputs are rated @ 2.5A.
    • Filtered and electronically regulated outputs.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Zero voltage drop when switching over to battery backup.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Battery presence and low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 12VDC: 37 BTU/Hr.
        • 24VDC: 74 BTU/Hr.
    • System AC input VA requirement: 287.5VA.

Downloads

View AllClose

Additional Information

Accessory Type:
Power Supply
Warranty:
Life-time Warranty
