Description

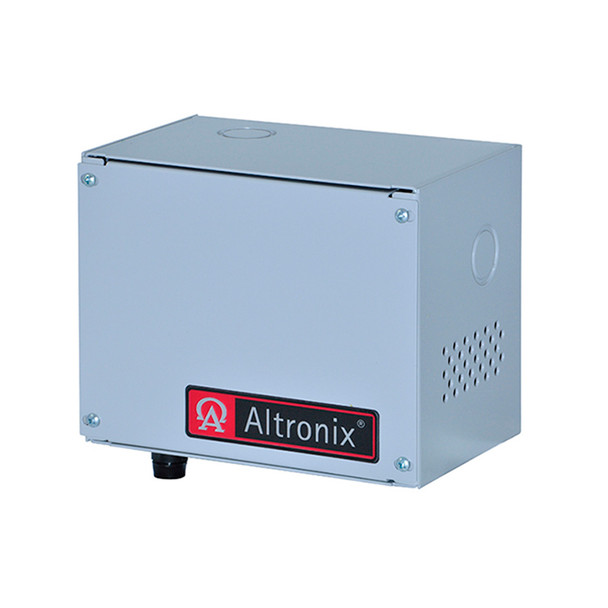

Altronix T2428100C AC Power Supply
Altronix T2428100C AC power supply provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Key features:
-
Input
- 115VAC 50/60 Hz, 0.95A.
-
Output
- 24VAC @ 4A. @ 28VAC @ 3.5A. supply current.
-
Features
- Fused input protection.
- Green grounding lead.
-
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 50 BTU/Hr.
- System AC input VA requirement: 109.25VA.
Enclosure:
- Wall mount enclosure for indoor use.
- Dimensions 7"W x 5.62"H x 4.5"D (178 mm W x 143 mm H x 114 mm D).
- 1/2" and 3/4" combination knockouts.
Weights (approximate):
- Product Weigtht: 5 Lbs. (2.227 kg).
- Shipping Weigtht: 5.7 Lbs. (2.59 kg).
Popular Search
Additional Information
|
Accessory Type:
|
Power Supply
|
|
Input Current:
|
0.95A
|
|
Input Voltage:
|
115VAC
|
|
Output Current:
|
3.5A
4A
|
|
Output Voltage:
|
28VAC
24VAC
|
