Altronix Vertiline24C CCTV Power Supply - 24 Fused Outputs

Brand: Altronix
Part Number: Vertiline24C
Write a Review
$558.66
$520.88
OR
Free shipping over $300 Free Shipping
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty

Description

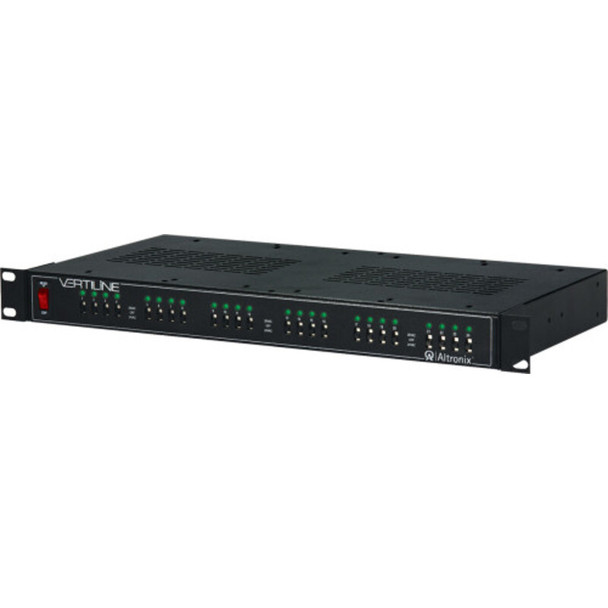

Altronix Vertiline24C CCTV Power Supply - 24 Fused Outputs

Vertiline24C CCTV Rack Mount Power Supply provides 24 fuse protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. This unit features individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in eight (8) and sixteen (16) output models with various power ratings.

Key Features:

  • Input
    • 115VAC 60 Hz., 3A.
  • Output
    • Twenty-four (24) individually selectable 24VAC or 28VAC power outputs with OFF position.
    • 24VAC or 28VAC @ 10A max. total (0.417A per device, 3A max.).
    • Twenty-four (24) external blade fuse protected outputs rated @ 3A.
    • Main fuse rated @ 10A.
    • Surge suppression.
  • Features
    • Twenty-four (24) power LEDs.
    • Illuminated master power disconnect circuit breaker with manual reset.
    • IEC 320 - 3-wire grounded line cord (detachable).
    • Removable terminal blocks with locking screw flange.
  • Temperature
    • Operating 0° C to 49° C (32° F to 120° F).
    • Storage - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 24VAC: 123 BTU/Hr.
        • 28VAC: 143 BTU/Hr.
    • System AC input VA requirement: 345VA.
