Description

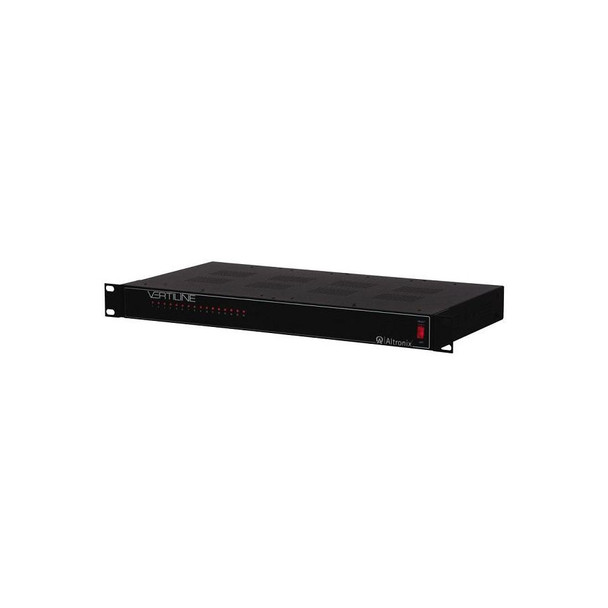

Altronix VERTILINE33D 16 PTC Protected DC CCTV Rack Mount Power Supply
Vertiline33D Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis.Vertiline Rack Mount Power Supplies are also available in 24VDC and eight (8) outputs configurations.
Key Features:
- 115VAC 60 Hz, 1.5A. input
- 12VDC outputs rated @ 8A. total current max
- (0.5A. per device, 2.5A. max.)
- Sixteen (16) PTC protected power outputs
- Filtered and electronically regulated
- Operating temperature: -20° C to 49° C ambient
- 49.13 BTU/Hr
- System AC input VA requirement: 172.5VA
- Sixteen (16) power LEDs
- Illuminated master power disconnect circuit breaker with manual reset
- IEC 320 - 3-wire grounded line cord (detachable)
- Removable terminal blocks with locking screw flange
Downloads
Datasheet
altronix-DSVERTILINE33D-A1.pdf
Popular Search
Additional Information
|
Accessory Type:
|
Power Supply
|
|
Environmental:
|
Indoor
|
|
Input Current:
|
0.5A
|
|
Input Voltage:
|
115VAC
|
|
Mount Type:
|
Rack Mount
|
|
Number of Supported Cameras:
|
16
|
|
Output Current:
|
2.5A
|
|
Warranty:
|
Life-time Warranty
|
