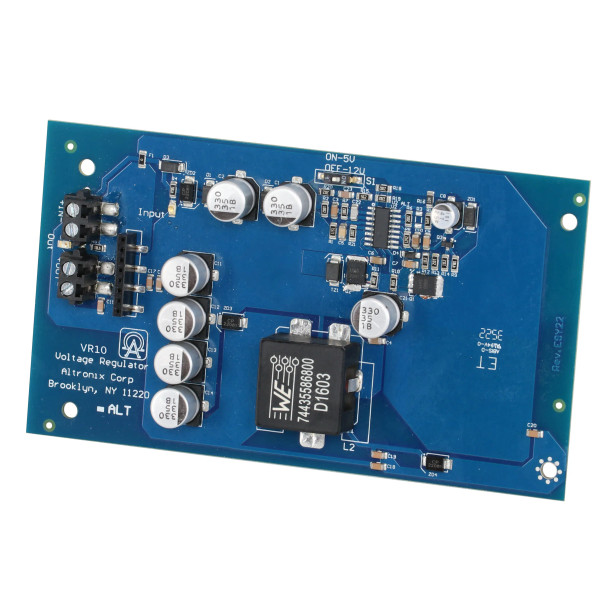

Altronix VR10 24VDC Input 5/12VDC Output 10A Voltage Regulator

Altronix VR10 24VDC Input 5/12VDC Output 10A Voltage Regulator

The Altronix VR10 is a compact voltage regulator that converts a 24VDC input into a regulated 5VDC or 12VDC selectable output at up to 10A supply current. This versatile module eliminates the need for an additional power supply when simultaneous 24VDC and 12VDC or 5VDC operation is required, significantly reducing system cost and complexity.

Featuring a unique stackable design via pin connector, the VR10 saves valuable enclosure space and reduces labor during installation. The unit includes surge suppression for downstream device protection and LED indicators for both input voltage presence and normal operating condition. Compatible with Altronix PDS8/PDS16/ACMS8/ACMS12 power distribution and access power controller modules, the VR10 integrates seamlessly into existing Altronix-based security power systems and ships with a lifetime warranty.

Key Features:

• 24VDC input with selectable 5VDC or 12VDC regulated output; provides flexible voltage conversion for mixed-voltage security installations
• 10A maximum output current rating; supports demanding loads including multi-camera and access control configurations
• Stackable pin-connector design; enables direct piggyback mounting onto compatible Altronix modules to save enclosure space
• Compatible with PDS8, PDS16, ACMS8, and ACMS12 sub-assemblies; expands installations with up to 16 independently switched outputs
• Surge suppression on input; protects downstream equipment from voltage transients and electrical disturbances
• Dual LED indicators for input and output status; allows quick visual verification of operational condition during commissioning and maintenance
• Compact board footprint of 5.375 x 3 x 1 inches; fits easily inside standard Altronix enclosures without modification
• Operating temperature range of 32°F to 120°F; reliable performance in typical equipment-room environments
• Lifetime warranty from Altronix; reflects long-term reliability and manufacturer confidence in product durability
