Altronix WAYPOINT10A AC Outdoor Power Supply - 24VAC and 28VAC (max current 3.5 amp)

Brand: Altronix
Part Number: WAYPOINT10A
Write a Review
  • Altronix WAYPOINT10A AC Outdoor Power Supply - 24VAC and 28VAC (max current 3.5 amp)
  • Altronix WAYPOINT10A AC Outdoor Power Supply - 24VAC and 28VAC (max current 3.5 amp)
$200.12

Help me pick a security camera

Technical Support Technical Support
Lifetime Warranty Lifetime Warranty
  • Environmental : Outdoor

Description

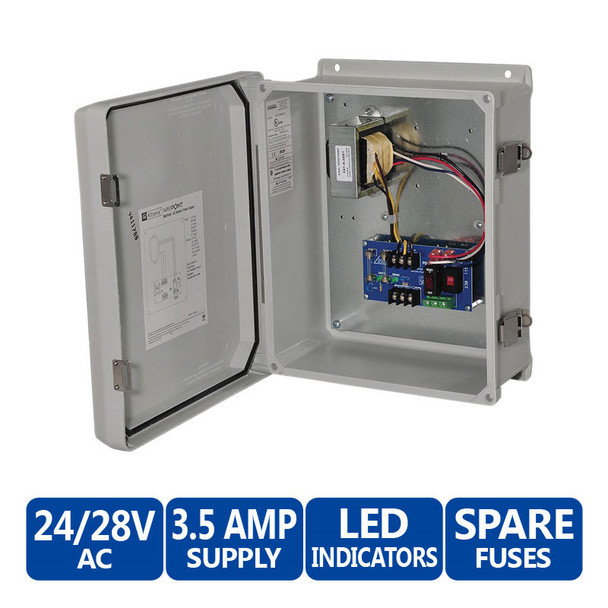

Altronix WAYPOINT10A AC Outdoor Power Supply/Charger

Altronix WAYPOINT10A AC Outdoor Power Supply/Charger provides for 24VAC and/or 28VAC outputs, which is distributed via one or two channels. It is ideal for powering CCTV cameras, heaters and other video accessories. This unit is equipped with an LED for indicating power output status and comes with spare fuses. Housed in an IP66-11 rated enclosure, this power supply/charger is perfect for outdoor use.

Key features:

  • 115VAC, 50/60Hz, 1.2 amp or 230VAC, 50/60Hz, 0.7 amp Input
  • Output:
    • 24VAC at 4 amp max
    • 28VAC at 3.5 amp max
  • Both 24VAC and 28VAC, not to exceed 3.5 amp&
  • 5A 250V output rating
  • -20° C to 50° C operating temperature
  • 50.16 BTU/Hr
  • System AC input VA requirement:
    • 115VAC - 138VA
    • 230VAC - 161VA
  • Individual power output LEDs
  • Spare fuses included
  • Lifetime warranty
  • NEMA 4/4X, IP66-11 rated enclosure for outdoor use
  • 13.31"H x 11.31"W x 5.59"D
  • Approx. 11.45 Lbs. (5.19 kg)

This product is also associated with:
Power Supplies

Additional Information

Accessory Type:
Power Supply
Environmental:
Outdoor
Warranty:
Life-time Warranty
