Description

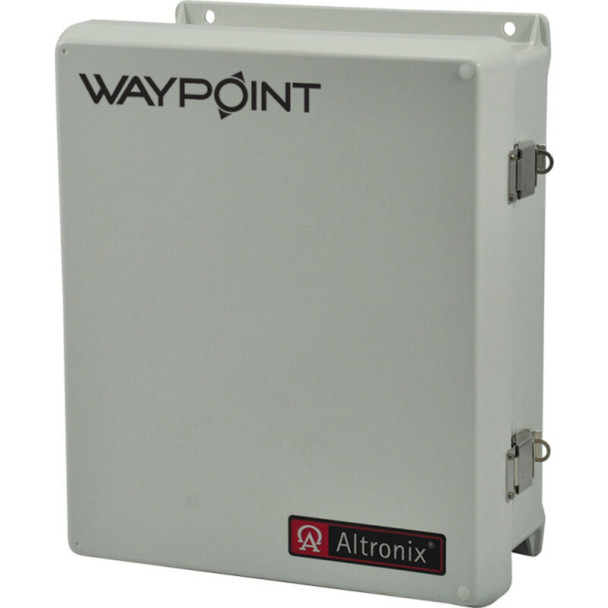

Altronix WayPoint17A8U CCTV Power Supply - Outdoor
WayPoint17A8U Outdoor Power Supply provides 24VAC or 28VAC distributed via eight (8) fuse protected outputs for powering CCTV Cameras, heaters, and other video accessories.
Key Features:
Input
- Input: 115VAC, 50/60Hz, 2.0A or 230VAC, 50/60Hz, 1.0A.
Output
Output options:
- a. 24VAC @ 7.25A max.
- b. 28VAC @ 6.25A max.
- Output fuses rated @ 5A/32V.
Visual Indicators
- Individual power output LED indicators.
- Illuminated master power switch.
Temperature
Operating Temperature:
- 24VAC @ 7.25A output: - 40° C to 60° C ( - 40° F to 140° F).
- 28VAC @ 6.25A output: - 40° C to 70° C ( - 40° F to 158° F).
- Storage Temperature: - 40° C to 75° C ( - 40° F to 167° F).
- Relative Humidity: 85%, +/- 5%.
- BTU/Hr. (approx.): 90 BTU/Hr.
- System AC input VA requirement: 230VA.
Operating Altitude
- - 304.8 to 2000m ( - 1000 to 6,561.679ft.).
Downloads
Datasheet
Altronix WayPoint17A8U Datasheet
Popular Search
Additional Information
Accessory Type:
|
Power Supply
|
Environmental:
|
Outdoor
|
Warranty:
|
Life-time Warranty
|
