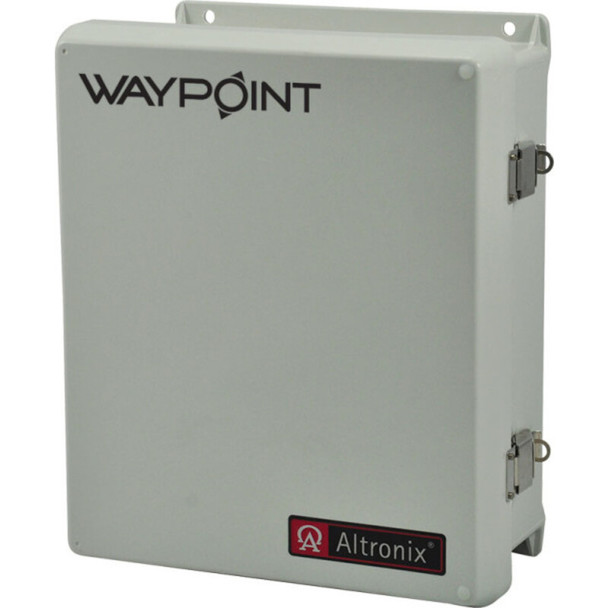

Altronix WayPoint30A8DU CCTV Power Supply - Outdoor

Brand: Altronix
Part Number: WayPoint30A8DU
Write a Review
$263.60

Help me pick a security camera

OR
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty
  • Environmental : Outdoor

Description

Altronix WayPoint30A8DU CCTV Power Supply - Outdoor

Altronix WayPoint30A8DU Outdoor Power Supply provides 24VAC and/or 28VAC distributed via eight (8) PTC protected outputs for powering CCTV Cameras, heaters, and other video accessories.

Key Features:

  • Input
    • Input: 115VAC, 50/60Hz, 3.0A or 230VAC, 50/60Hz, 1.5A.
  • Output
      • Output options:
        • a. 24VAC @ 12.5A max.
        • b. 28VAC @ 10A max.
    • Output PTCs rated @ 2.5A.
  • Visual Indicators
    • Individual power output LED indicators.
    • Illuminated master power switch.
  • Temperature
      • Operating:
        • 24VAC @ 12.5A output: - 40° C to 60° C ( - 40° F to 140° F);
        • 28VAC @ 10A output: - 40° C to 70° C ( - 40° F to 158° F).
    • Storage: - 40° C to 75° C ( - 40° F to 167° F).
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr. (approx.): 154 BTU/Hr.
    • System AC input VA requirement: 345VA.
  • Operating Altitude
    • - 304.8 to 2000m ( - 1000 to 6,561.679ft.).

Downloads
