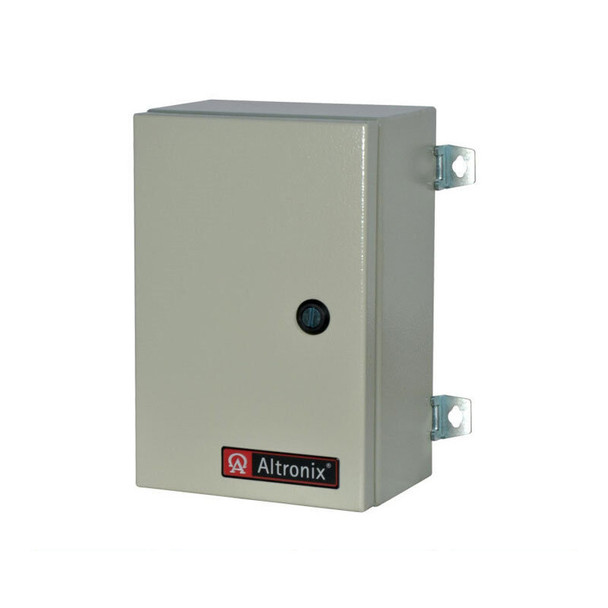

Altronix WPTV248UL CCTV AC Power Supply
CCTV Cameras, heaters and other video accessories stay powered up courtesy the Altronix WPTV248UL CCTV AC Power Supply. This unit distributes 24VAC or 28VAC via 8 fused outputs for optimum current supply. This device requires NEMA 4/IP 65 Rated enclosure for outdoor use and comes with a lifetime guarantee.
Key features of Altronix WPTV248UL
- 115VAC, 50/60Hz, 0.9 amp input
- Eight (8) fuse protected outputs
- 24VAC @ 3.5 amp (85VA) supply current or 28VAC @ 3 amp (85VA) supply current
- Outputs are rated @ 3.5 amp
- Surge suppression
- 0° C to 49° C ambient operating temperature
- 42.99 BTU/Hr
- 103.5VA System AC input VA requirement
- Secondary fuse rated @ 5 amp/250V
- AC power LED
- Power ON/OFF switch
- Spare fuses provided
- NEMA 4 Rated enclosure for outdoor use
- Lifetime Warranty
- 12"H x 7.75"W x 4.5"D
- Approx. 12.4 Lbs. (5.624 kg)
Downloads
Datasheet
Altronix-WPTV248UL-Datasheet-A1
Quick Start Guide
Altronix-WPTV248UL-Quick-Start-Guide-A1
Popular Search
Additional Information
|
Accessory Type:
|
Power Supply
|
|
Environmental:
|
Outdoor
|
|
Warranty:
|
Life-time Warranty
|
