Description

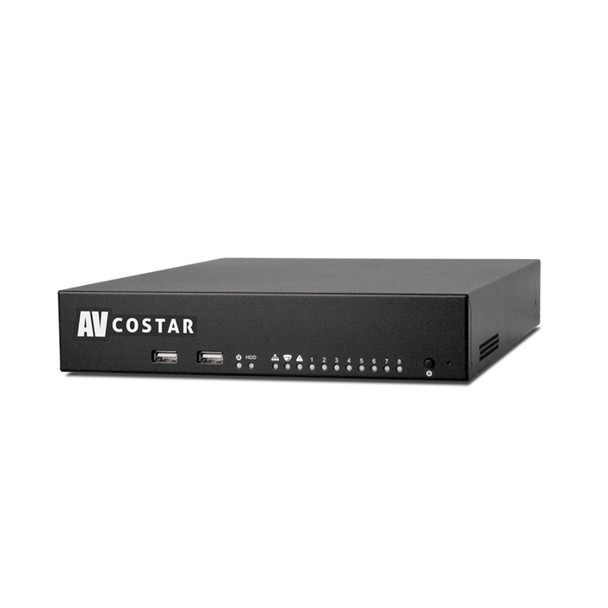

Arecont Vision AV-CN800-8T 8 Channel 4K Cloud Managed Network Video Recorder with 8-Port PoE, 8TB HDD
Arecont Vision® ConteraCMR® NVR appliance is designed to offer powerful IP recording in an affordable, compact chassis. The ConteraCMR NVR appliance is equipped with an on-board 8 or 16 channel PoE switch, with a recording capacity of up to 24 channels, allowing for Plug and Play connection with Arecont Vision and ONVIF cameras or RTSP video streams. With full integration to ConteraWS® Web Services, the ConteraCMR NVR appliance offers centralized user management, single sign-on convenience, mobile apps and a web client that allows for easy remote connection to your recorders. Network setup is fast and easy using ConteraWS Web Services, and eliminates the need for port forwarding or DDNS. The ConteraCMR NVR appliance runs on a secure Linux® OS and comes preloaded with ConteraVMS® Server software as a turn key solution.
Key Features:
- Cloud Management with ConteraWS™
- ConteraVMS™ Ready
- Cloud Video Export and Sharing
- 8TB Storage Capacity
- 2 Hard Disk Drives (HDDs)
- Linux OS
- Built-in PoE Switch
- 8 PoE Channels
- 24 Max Channel Count (16 Non-PoE Channels)
- IP Channel Upgrades
- Solid State OS Drive (SSD)
- Intel Celeron Processor
- Dual NIC
- 3-Year Hardware Warranty
- 1-Year Advanced Replacement
Downloads
Compatible products
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
4 Channel
|
|
Certifications:
|
UL Listed
|
|
Channel Capacity:
|
8 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile S
AV Costar
RTSP
|
|
Compression:
|
H.264
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
221 x 44 x 275 mm (8.7 x 1.7 x 10.8 in)
|
|
Environmental:
|
Indoor
|
|
LED Indicator:
|
Status LED
|
|
Made in:
|
Taiwan
|
|
Max Power Consumption:
|
135 Watts
|
|
Max. Recording Resolution:
|
4K
|
|
Max. Storage Capacity:
|
16 TB
|
|
Mounting:
|
Wall Mount
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Network Interface:
|
2x NIC input
|
|
Number of PoE Ports:
|
8 PoE Ports
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
8 TB
|
|
Processor (CPU):
|
Intel Celeron
|
|
Product Series:
|
Arecont Vision ConteraCMR Series
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Relay Output:
|
4 Channels
|
|
USB Interface:
|
2x USB 2.0
2x USB 3.0
|
|
Video Output:
|
1x HDMI
1x DisplayPort
|
|
Warranty:
|
3-year Manufacturer Warranty
|
