Description

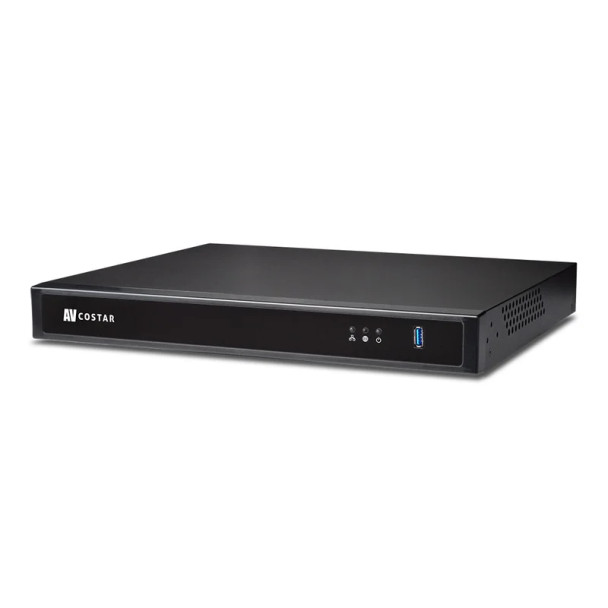

Arecont Vision AV-CVP16-16T 24 Channel Network Video Recorder with Single NIC + Integrated 16 Port PoE Switch, 16TB HDD, Linux
AV Costar's ConteraCMR Cloud Managed servers are designed to offer maximum performance and reliability, paired with the powerful features and functionality of the ConteraWS web services platform. ConteraWS web services allow you to centralize user management, monitor the health of your recording system, and take advantage of time-saving features like online export and video or clip file sharing. Simply enable ConteraWS on your recorder, and then connect using the ConteraWS web client to manage recorder configurations and user access.
Key Features:
- NDAA Compliant
- 1-Year Advanced Replacement
- 3-Year Hardware Warranty
- Single NIC + Integrated 16 Port PoE Switch
- Intel Celeron Processor
- Solid State OS Drive (SSD)
- 24 Max Channel Count
- Linux OS
- 2 Hard Disk Drives (HDDs)
- 1U Rack Mountable
- 16TB Storage Capacity
- ConteraVMS™ Ready
- IP Channel Upgrades
- Cloud Video Export and Sharing
- Cloud Management with ConteraWS™
Note: ConteraWS License Sold Separately.
Replacement of:
AV-C1600-20T
AV-C1600-16T
Downloads
Datasheet
Arecont-Vision-AV-CVP16-16T-Datasheet-A1
Compatible products
Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
4K Support:
|
4K Supported
|
|
Capacity for each disk:
|
up to 10TB
|
|
Certifications:
|
UL Listed
FCC
CE
|
|
Channel Capacity:
|
24 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile S
AV Costar
RTSP
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
366 x 46 x 316 mm (14.4 x 1.8 x 12.6 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
Languages:
|
English
|
|
Made in:
|
Taiwan
|
|
Max Power Consumption:
|
240 Watts
|
|
Max. Recording Resolution:
|
12MP (4K)
|
|
Max. Storage Capacity:
|
20 TB
|
|
Mounting:
|
Rack Mount
|
|
Network Interface:
|
1x NIC input
|
|
Number of PoE Ports:
|
16 PoE Ports
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
16 TB
|
|
Product Series:
|
Arecont Vision ConteraCMR Series
|
|
Rack Unit (U):
|
1U
|
|
Recorder Technology:
|
Video Server
|
|
USB Interface:
|
3x USB 3.0
|
|
Video Output:
|
2x HDMI
|
|
Warranty:
|
3-year Manufacturer Warranty
|
