Arecont Vision MPL12-40 12-40mm Varifocal Security Camera Lens - Manual IRIS, IR Corrected, CS-Mount
$232.00
Technical Support
3 Year Warranty
- Lens Type : Varifocal (Manual Zoom) Lens
- Lens Size : 12~40mm Lens
- Sensor Size : 1/2" Sensor
- Color : Black
- Mount Type : CS-Mount
- Sensor Size : 1/2"
- Aperture : F1.8
- IR Corrected : Yes
Description

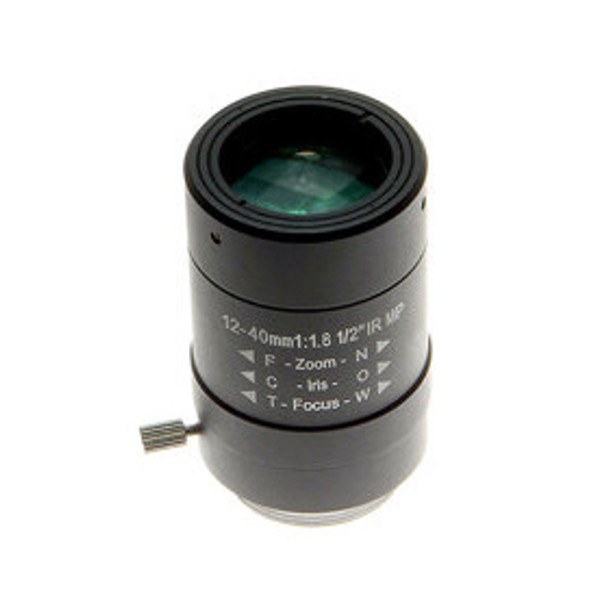

Arecont Vision MPL12-40 Vari-Focal Lens
Arecont Vision MPL12-40 Vari-Focal Lens is used in combination with the 1.3MP to 5MP MegaVideo cameras. This lens is IR corrected for superior performance and image quality. The lens is CS mount, with a large optical format at 1/2". All these features when put together ensure a compact dimension, lower distortion and better relative illumination.
Key features of Arecont Vision MPL12-40
- Higher sharpness
- Lower distortion
- Improved relative illumination
- Compact dimension
- CS mount
- Large optical format: 1/2"
- Compatible with 1.3MP to 5MP MegaVideo cameras
- IR corrected
- Manual IRIS
- φ33x51.5mm Iris dimension
- 0.5m M.O.D.
- 1.8 Aperture
- 12-40mm focal lenth
- 6.64-59.4mm back focal length
Downloads
Datasheet
Arecont-Vision-MPL12-40-Datasheet-A1
Popular Search
Additional Information
Accessory Type: |
Camera Lens
|
Aperture: |
F1.8
|
Color: |
Black
|
IR Corrected: |
|
Iris: |
Manual
|
Lens Size: |
12~40mm
|
Lens Type: |
Varifocal (Manual Zoom) Lens
|
Mount Type: |
CS-Mount
|
Sensor Size: |
1/2"
|
Warranty: |
3-year Manufacturer Warranty
|
