AXIS 5V PoE Splitter for network device with no built-in support for PoE- 02044-001

Brand: AXIS
Part Number: 02044-001
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
AXIS Accessories
Discontinued
  • AXIS 5V PoE Splitter for network device with no built-in support for PoE- 02044-001 - 1
  • AXIS 5V PoE Splitter for network device with no built-in support for PoE- 02044-001 - 3 Years Warranty
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Output Voltage : 5VDC
  • Input Current : 0.6A
  • Input Voltage : 57VDC 36VDC
  • Output Current : 2.5A

Related Products

Description

AXIS 5V PoE Splitter for network device with no built-in support for PoE- 02044-001

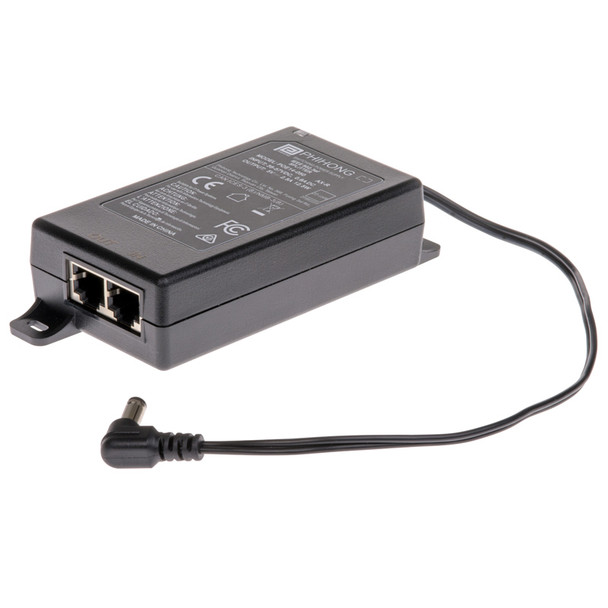

A splitter is used to split the power and data in an Ethernet cable into two separate cables, which then can be connected to a network device that has no built-in support for Power over Ethernet (PoE). The PoE Splitter 5 V is IEEE 802.3af compliant and can be powered from any Axis midspan or PoE switch. The splitter is easily installed, with no need for system reconfiguration.

Key Features:

  • IEEE 802.3af
  • Reduced installation costs
  • Plug-and-play

Downloads

Popular Search

AXIS Accessories

Additional Information

Accessory Type:
Splitter
Alternative SKUs:
Z4-02044001
Dimensions:
28 x 55 x 100 mm (1.1 x 2.2 x 3.9 in)
Input Current:
0.6A
Input Voltage:
57VDC 36VDC
Operating Humidity:
10% to 90% RH (non-condensing)
Operating Temperature:
0 ºC to 40 ºC (32 ºF to 104 ºF)
Output Current:
2.5A
Output Voltage:
5VDC
PoE Standards:
IEEE 802.3af
Storage Humidity:
5% to 95% RH (non-condensing)
Storage Temperature:
-25 °C to 65 °C (-13 °F to 149 °F)
Warranty:
5-year Manufacturer Warranty
