AXIS Electrical Safety Kit A 120 VAC Surge Protection Kit - 03536-001

AXIS Electrical Safety Kit A 120 VAC Surge Protection Kit - 03536-001

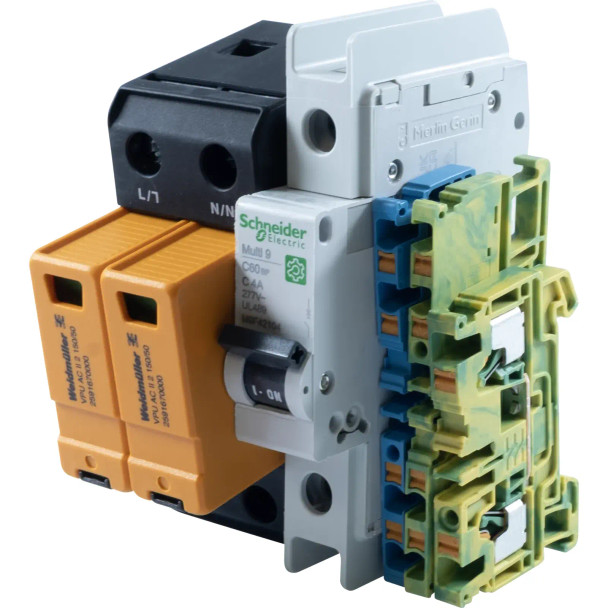

The AXIS Electrical Safety Kit A 120 VAC is a purpose-built electrical protection bundle designed for safe and reliable installation of surveillance equipment in cabinets and enclosures. It combines a Type II/III surge protector, a miniature circuit breaker (MCB), and terminal blocks into a single, ready-to-deploy kit — eliminating the need to source individual components and ensuring full compatibility with AXIS Surveillance Cabinet Series installations.

The included surge protector handles a discharge current of up to 50 kA (Imax) and offers a response time of ≤25 ns, providing robust protection against transient voltage spikes and power surges that can damage connected cameras and recording equipment. The MCB fuse features a Tripping Curve C with a breaking capacity of up to 14 kA AIR at 240V AC, safeguarding the installation against short-circuit events. Operating across a wide temperature range of -30°C to 70°C (-22°F to 158°F), the kit is suitable for both indoor and outdoor cabinet deployments. TAA compliant and certified to UL/cUL, CE, RCM, and UKCA standards, it meets the requirements of commercial and government surveillance projects alike.

Key Features:

• Type II/III surge protector with 50 kA max discharge current; shields connected cameras and recorders from damaging power transients and lightning surges.
• Response time ≤25 ns; virtually instantaneous protection ensures equipment is safeguarded before surge energy can cause damage.
• Miniature circuit breaker (MCB) with Tripping Curve C; automatically disconnects the circuit during overload or short-circuit conditions to prevent equipment damage.
• Supports 120V/240V mains voltage; compatible with both North American and international power standards.
• Operating temperature -30°C to 70°C (-22°F to 158°F); reliable performance across a broad range of indoor and outdoor cabinet environments.
• TAA compliant with UL/cUL, CE, RCM, UKCA certifications; meets federal procurement requirements and international safety standards.
• Includes surge protector, MCB fuse, and terminal blocks; provides everything needed for a complete, safe cabinet wiring installation in one kit.
• 3-year manufacturer warranty; backed by AXIS's long-term commitment to product reliability.
