Description

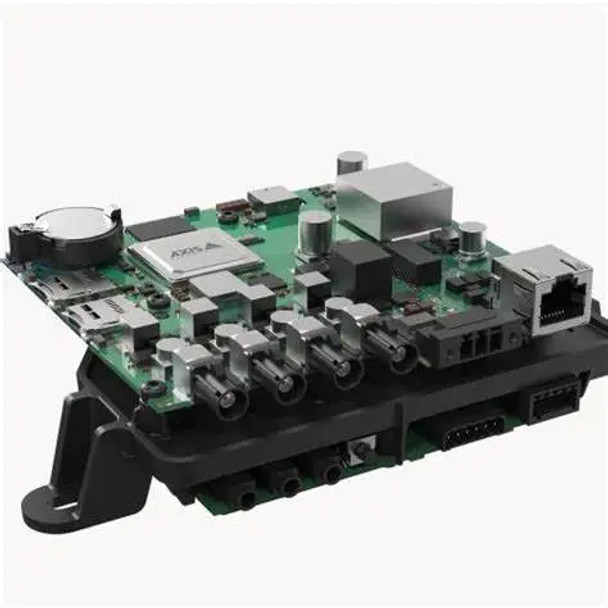

AXIS F9114-B Mk II Main Unit - 03001-001
The Axis F9114-B Mk II is a robust barebone main unit designed to power multi-channel surveillance systems with high flexibility and edge-based intelligence. Capable of handling up to four sensor units simultaneously, it supports up to 4K resolution at 12/15 fps and offers a deep learning processing unit for advanced analytics. With secure FAKRA connectors, two audio-in ports, and four configurable I/O ports, it allows integration of microphones and external accessories. Built for integration into UL-certified systems, it features Axis Edge Vault, ensuring device integrity and secure cryptographic operations. The system supports video compression formats including H.264, H.265, and Motion JPEG, with advanced streaming capabilities and signal-to-noise optimization. Thanks to ONVIF compliance and compatibility with Axis video management systems, it fits seamlessly into modern surveillance infrastructures. Additionally, the unit provides rich analytics options such as Axis Object Analytics, Scene Metadata, and Audio Analytics, with scenario customization and AI-based classification. Edge security is reinforced through signed OS, secure boot, and encrypted storage, while comprehensive event and system integration features make it adaptable to various environments. Ideal for use in environments demanding secure, high-performance video processing and analytics in a compact format.
Key Features:
- UL recognized component; suitable for integration into UL-certified surveillance systems.
- 4-channel main unit with up to 4K at 12/15 fps; enables high-resolution multi-sensor video capture.
- Two audio-in, four configurable I/O ports; allows connection of microphones and other wired accessories.
- Deep learning processing unit; supports advanced AI-powered analytics at the edge.
- Support for AXIS Object Analytics and Scene Metadata; enables detection and classification of humans, vehicles, and behaviors.
- Secure FAKRA connectors; provide reliable and robust physical connections to sensor units.
- Cybersecurity features with Axis Edge Vault; includes secure boot, TPM 2.0, and secure keystore with FIPS 140-2 Level 2 compliance.
- Support for multiple video codecs; includes H.264, H.265, and Motion JPEG with Axis Zipstream for bandwidth efficiency.
- Comprehensive event actions; enables system responses to audio, temperature, network, I/O, and video triggers.
- MicroSD and NAS recording options; supports edge and network-attached video storage with encryption.
- Wide operating temperature range; functions from -40 °C to 60 °C, suitable for diverse environments.
- Low latency video mode and flexible capture settings; allows fine-tuned performance across varied sensor inputs.
- Compact barebone design; facilitates integration into custom surveillance hardware.
- Compatible with AXIS Camera Station and VMS software; ensures seamless system management.
- 5-year warranty; guarantees long-term reliability and manufacturer support.
