Description

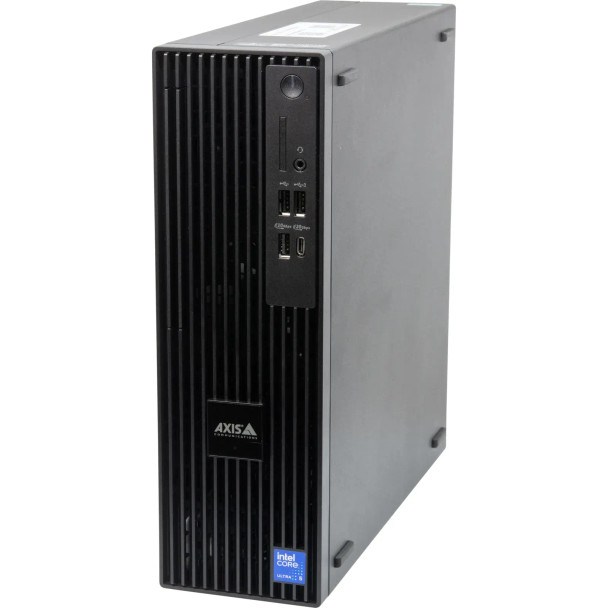

AXIS S9302 Mk II Camera Station Workstation with AXIS Camera Station Pro Client - 03427-004
The AXIS Camera Station S9302 Mk II Workstation is a powerful, extensively tested and validated client/server solution engineered for demanding multi-monitor video management installations. This scalable small form factor workstation can function as a client when connected to AXIS S12 or S22 Series servers, or as a server when paired with AXIS S30 or S40 Series recording solutions. Powered by Intel Core Ultra 5 Processor 235 with 16GB DDR4 RAM, 256GB SSD, and dedicated Nvidia A400 graphics card, the system runs Windows 11 IoT Enterprise LTSC 2024 and comes preloaded with AXIS Camera Station Pro client software for immediate deployment.
The workstation supports up to four 4K monitors simultaneously through seven DisplayPort outputs (3× DisplayPort + 4× Mini DisplayPort with included adapters), enabling comprehensive multi-monitor surveillance viewing configurations for large-scale operations. Live view performance supports any combination across four 4K displays, from single 4K stream at 30fps to 36-split 360p at 15fps. The Nvidia A400 professional graphics card provides hardware-accelerated video decoding for smooth playback and rendering. The integrated AXIS Recorder Toolbox ensures quick installation and configuration, while FIPS 140-2 Level 2 certified TPM 2.0, Secure Boot, and encrypted drive support provide enterprise-grade security.
The S9302 Mk II includes 10 AXIS Audio Manager Pro licenses tied to the hardware, supporting up to 200 simultaneous audio streams. With 360W Platinum power supply, typical power consumption of 110W (maximum 160W), the compact 303×95×293mm chassis balances performance with efficiency. Front panel connectivity includes universal audio jack, USB 2.0, USB 3.2 Gen 2×1, and USB-C, while the rear panel offers 1GbE RJ45, additional USB ports, and seven display outputs. TAA compliant for government projects, the workstation includes next-business-day on-site hardware replacement and an industry-leading 5-year warranty.
Key Features:
- Intel Core Ultra 5 Processor 235 with Nvidia A400 GPU, 16GB RAM and 256GB SSD; delivers powerful performance for intensive multi-camera monitoring with hardware-accelerated video decoding
- Quad 4K monitor support via 7 DisplayPort outputs (3× DP + 4× Mini DP with adapters); enables comprehensive surveillance viewing with up to 36-camera splits across four displays
- Nvidia A400 professional graphics card; provides dedicated GPU acceleration for smooth playback and rendering of multiple high-resolution video streams
- Windows 11 IoT Enterprise LTSC 2024 with AXIS Camera Station Pro client preloaded; delivers familiar interface with professional video management software ready to deploy
- 360W Platinum power supply with 110W typical consumption; ensures reliable operation with energy-efficient design meeting ENERGY STAR standards
- FIPS 140-2 Level 2 TPM 2.0 with Secure Boot and encrypted drive support; provides enterprise-grade security meeting government and compliance requirements
- TAA compliant design with next-business-day on-site support; suitable for federal projects with rapid hardware replacement ensuring minimal downtime
- 5-year warranty with extensive certifications; provides long-term protection with FCC, CE, RoHS compliance for global deployments
Downloads
Additional Information
|
Accessory Type:
|
Workstation
|
|
Certifications:
|
TAA Compliant
|
|
Dimensions:
|
12 x 3.7 x 11.5in
|
|
Max Power Consumption:
|
360W
|
|
Network Interface:
|
1 Port
|
|
Processor (CPU):
|
Intel Core Ultra 5
|
|
RAM:
|
16 GB
|
|
Resolution:
|
4K
|
|
Storage Humidity:
|
5% to 95% RH
|
|
Storage Temperature:
|
-40 °C to 65 °C (-40 °F to 149 °F)
|
|
USB Interface:
|
10 Ports
|
|
Video Output:
|
7 Ports
|
