AXIS TQ1503-E Dual Camera Mount - 03156-001

AXIS TQ1503-E Dual Camera Mount - 03156-001

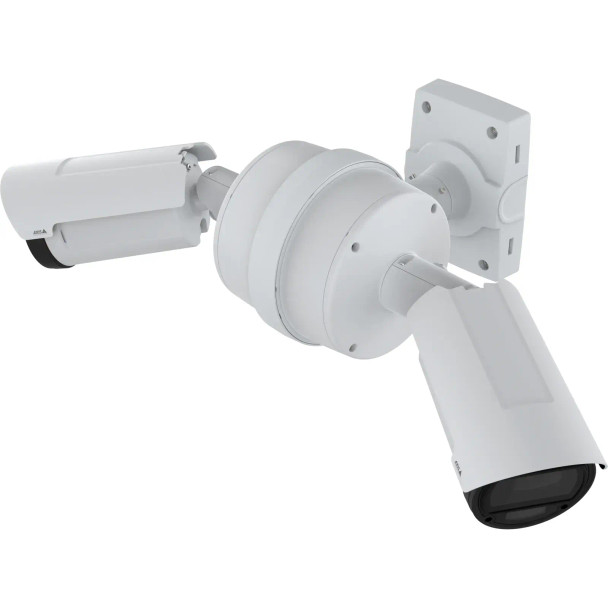

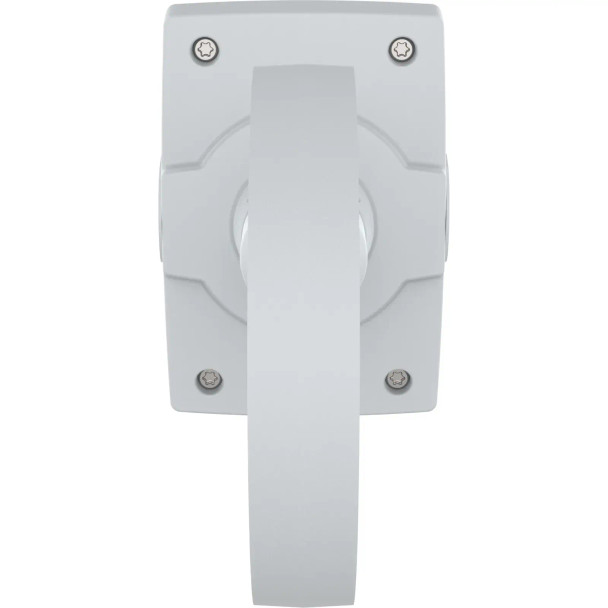

The AXIS TQ1503-E Dual Camera Mount is a versatile back-to-back mounting accessory designed to simplify panoramic surveillance installations using two Axis dome or bullet cameras. By mounting both cameras on a single bracket, installers can achieve wide-angle or panoramic coverage ideal for stadiums, arenas, plazas, parking lots, and other large open areas that demand extensive visual coverage without multiple independent mounting structures.

The mount features internal cable routing for a clean, professional finish, and is compatible with a wide range of Axis cameras including the Q18 series, which ships with a PoE cable to further streamline the installation process. Rated IK10 for impact resistance, the TQ1503-E withstands vandalism attempts in both indoor and outdoor environments. Its impact-resistant aluminum construction with UV-resistant plastic cover plates ensures long-term durability in exposed outdoor conditions. The mount supports a maximum camera load of 10 kg (22 lb) and carries a 5-year warranty.

Note: To ensure physical stability, the AXIS TQ1503-E must not be used for single camera installations. It requires two cameras to maintain proper load balance.

Key Features:

• Back-to-back dual camera design; enables panoramic coverage from a single mounting point, reducing installation hardware and time.
• Compatible with a wide range of Axis dome and bullet cameras; integrates seamlessly into existing Axis surveillance ecosystems.
• IK10 impact resistance rating; protects the mount and cameras from deliberate vandalism in high-risk outdoor and public environments.
• Internal cable routing; delivers a clean, tamper-resistant cable management solution for professional installations.
• Suitable for both indoor and outdoor use; rated for permanent exterior installations without additional weatherproofing.
• Maximum 10 kg (22 lb) load capacity; accommodates heavier Axis camera models without compromise.
• 5-year warranty; backed by Axis industry-leading support for long-term peace of mind.
