Description

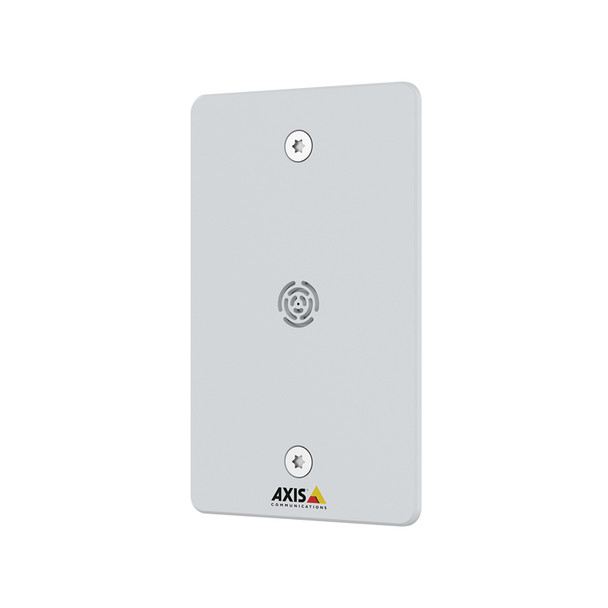

AXIS TU1001-V Microphone for Indoor usage - 02270-001
AXIS TU1001-V Microphone is an indoor robust microphone with IK10 rating. The microphone needs to be connected to a network device with support for audio-in 3.5mm jack, such as a camera, an audio module or an audio bridge. AXIS TU1001-V with its flat design is perfect for flush mounting on a wall or ceiling or with an already installed single electrical gang box.
Key Features:
- Indoor microphone
- Robust, IK10-rated
- Frequency range: Within 20 Hz - 20 kHz
- Sensitivity: -30.8 dB +-3 dB (relative 1kHz)
- Max SPL: 118.7 dB (10% THD)
- SNR: 73.4 dB A-weighted (relative 1 kHz @ 1 Pa, 94 dB SPL)
- For easy wall or ceiling installation
Downloads
Datasheet
AXIS-02270-001-Datasheet-A1
User Manual
AXIS-02270-001-User-Manual-A1
Document
AXIS-02270-001-Dimensions-A1
Popular Search
Compatible products
Additional Information
|
Alternative SKUs:
|
TU1001-V
|
|
Audio Surveillance Type:
|
Microphone
|
|
Durability:
|
Vandal Proof
|
|
Environmental:
|
Indoor
|
|
Frequency:
|
20 Hz
20 kHz
|
|
Languages:
|
English
German
French
Spanish
Italian
Russian
Japanese
Korean
Portuguese
Traditional Chinese
|
|
Material:
|
Aluminum
|
|
Mounting:
|
Wall Mount
|
|
Protection Code:
|
IK10
|
|
Storage Temperature:
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
