Description

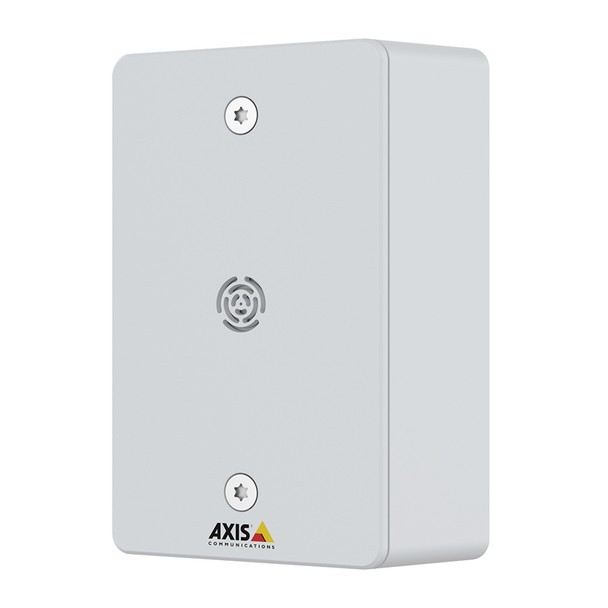

AXIS TU1001-VE Microphone for Outdoor usage - 02269-001
AXIS TU1001-VE Microphone is a robust outdoor-ready microphone. It’s vandal-proof and IK66-rated. The microphone needs to be connected to a network device with support for audio-in 3.5mm jack, such as a camera, an audio module or an audio bridge. AXIS TU1001-VE can be wall or ceiling mounted and it’s possible to attach conduits using an AXIS ACI Conduit Adapter.
Key Features:
- Outdoor-ready
- Robust, IK10-rated
- Weatherproof, IP66-rated
- Frequency range: Within 20 Hz - 20 kHz
- Sensitivity: -32.1 dB ±3 dB (relative 1kHz)
- Max SPL: 115.3 dB (10% THD)
- SNR: 71.4 dB A-weighted (relative 1 kHz @ 1 Pa, 94 dB SPL)
- Connectors: 3.5 mm stereo plug
Downloads
Datasheet
AXIS-02269-001-Datasheet-A1
User Manual
AXIS-02269-001-User-Manual-A1
Document
AXIS-02269-001-Dimensions-A1
Popular Search
Compatible products
Additional Information
|
Alternative SKUs:
|
TU1001-VE
|
|
Audio Surveillance Type:
|
Microphone
|
|
Dimensions:
|
51 x 119 x 75 mm (2 x 4.69 x 2.95 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Frequency:
|
20 Hz
20 kHz
|
|
Material:
|
Aluminum
|
|
Protection Code:
|
IP66
IK10
|
|
Storage Temperature:
|
-40 ºC to 70 ºC (-40 ºF to 158 ºF)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
