The AXIS TU8008 Media Converter extends Ethernet networks over optical fiber for long-distance camera installations such as city surveillance, airports, and large campuses. By converting copper Ethernet to fiber, it mitigates lightning and electrical surge risks on long cable runs while preserving reliable camera connectivity and enabling remote maintenance access from monitors or laptops at either end of the link.

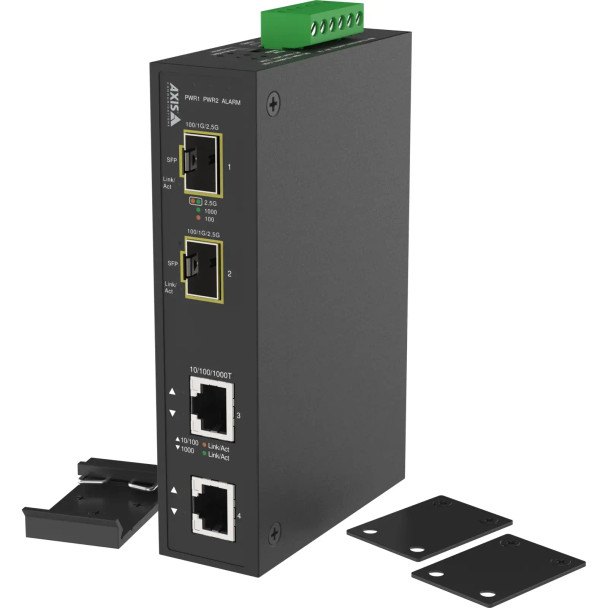

Equipped with two shielded RJ45 ports (10/100/1000BASE-T) and two SFP slots supporting 100/1G/2.5GBASE-X modules, the TU8008 offers flexible deployment options including daisy-chain connections that can support multiple cameras depending on bit rate and link limitations. The device runs on 12–48 VDC or 22–26 VAC power, drawing a maximum of 4.92 W, and provides a 6-pin AC/DC power and alarm terminal connector for straightforward field wiring.

Housed in a compact black steel enclosure rated IP30, the TU8008 is designed for a wide operating temperature range from -40 °C to 75 °C (-40 °F to 167 °F), making it suitable for challenging indoor and outdoor enclosure environments. Installation is fast with the included wall mount and DIN rail clip, and the unit is TAA compliant with CE, FCC, ICES, RCM, and UL/cUL approvals backed by a 3-year warranty.

Key Features:

• Two Shielded RJ45 Ports (10/100/1000BASE-T); enables reliable gigabit Ethernet connectivity plus daisy-chain configurations for multiple downstream devices.
• Two SFP Slots Supporting 100/1G/2.5GBASE-X Modules; converts copper Ethernet to single-mode or multi-mode fiber for long-distance installations.
• Wide Input Voltage Range 12–48 VDC / 22–26 VAC at 4.92 W Max; provides flexible powering options that simplify integration with existing site power.
• Wide Operating Temperature -40 °C to 75 °C (-40 °F to 167 °F); supports deployment in unconditioned outdoor cabinets and harsh climate locations.
• IP30-Rated Steel Casing; protects internal components against solid objects in indoor and enclosure-mounted installations.
• Wall and DIN Rail Mounting Options; speeds up installation in network cabinets, camera housings, and surveillance equipment rooms.
• Integrated Power, Network, and Alarm LED Indicators; gives technicians at-a-glance status feedback during deployment and troubleshooting.
• Approvals for CE, FCC, ICES, RCM, UL/cUL; ensures regulatory compliance for U.S., Canadian, European, and Australian installations.
• TAA Compliant with 3-Year Warranty; qualifies for U.S. federal procurement and backs the product with long-term manufacturer support.
• Lightning Risk Mitigation via Fiber Conversion; reduces surge damage risk on long outdoor cable runs compared to copper-only links.
