Axton AT-11S.11S282010 Outdoor Smart IR Illuminator with 20x10 degree angle
The Smart AT-11S IR Illuminator allows seamless and precise integration via input output (I/O) ports. Sync with a camera or any other system device with I/O capability. For easy “plug-and-play” integration, automatic DAY/NIGHT switch turns IR ON/OFF, based upon lighting conditions.
Key Features:
- Wavelength - 850nm Infrared
- Outdoor IP67 Rated

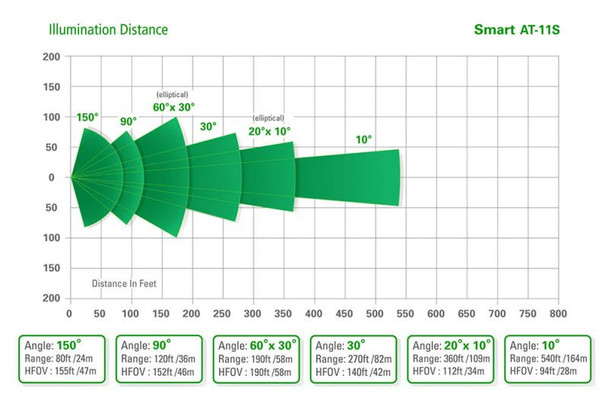

- Angle/Coverage: 20x10 degree
- Illumination Range: up to 540ft. (10 degree)
- Power Consumption - 11 Watts
- Input Voltage - 24-36V DC or 24V AC
- Operating Temperature: -58° to 140°F / -50° to 60°C
- Dimensions: 4.25"x 2"x 4.25" / 108 x 51 x 108 mm
- Weight: 1.25 lbs/ .56kg
- I/O Ports for Seamless Integration
- Automatic Day/Night Switch
- Rugged Construction – Vandal Resistant
- Designed and Manufactured in the USA
- Lifetime Warranty with Advanced Replacement
- Pan/Tilt U Bracket Included
Downloads
Datasheet
Axton-AT-11S.11S282010-Datasheet-A1
Quick Start Guide
Axton-AT-11S.11S282010-Quick-Start-Guide-A1
Additional Information
|
Accessory Type:
|
Infrared Illuminators
|
|
Dimensions:
|
108 x 51 x 108 mm (4.25 x 2 x 4.25 in)
|
|
Environmental:
|
Outdoor
|
|
Input Voltage:
|
24VAC
|
|
Max Power Consumption:
|
11 Watts
|
|
Warranty:
|
Life-time Warranty
|
|
Wavelength (nm):
|
850
|
