Axton AT-11S.11S286030 Outdoor Smart IR Illuminator with 60x30 degree angle
$289.99
✅ Help me pick a security camera
- Environmental : Outdoor
Description
Axton AT-11S.11S286030 Outdoor Smart IR Illuminator with 60x30 degree angle
The Smart AT-11S IR Illuminator allows seamless and precise integration via input output (I/O) ports. Sync with a camera or any other system device with I/O capability. For easy “plug-and-play” integration, automatic DAY/NIGHT switch turns IR ON/OFF, based upon lighting conditions.
Key Features:
- Wavelength - 850nm Infrared
- Outdoor IP67 Rated
- Angle/Coverage: 60x30 degree

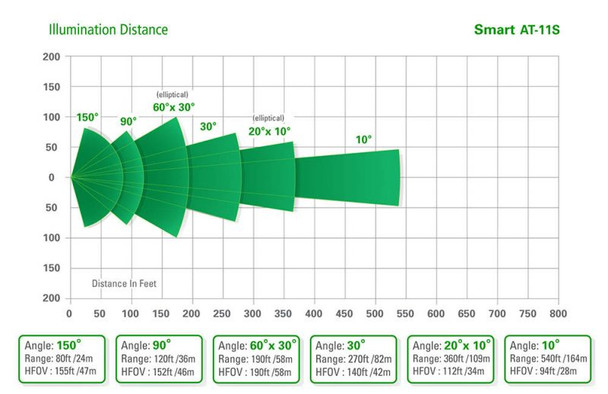

- Illumination Range: up to 540ft. (10 degree)
- Power Consumption - 11 Watts
- Input Voltage - 24-36V DC or 24V AC
- Operating Temperature: -58° to 140°F / -50° to 60°C

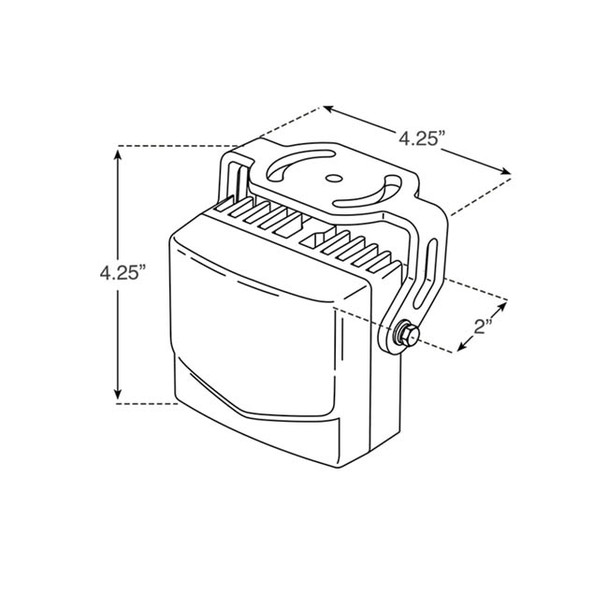

- Dimensions: 4.25"x 2"x 4.25" / 108 x 51 x 108 mm
- Weight: 1.25 lbs/ .56kg
- I/O Ports for Seamless Integration
- Automatic Day/Night Switch
- Rugged Construction – Vandal Resistant
- Designed and Manufactured in the USA
- Lifetime Warranty with Advanced Replacement
- Pan/Tilt U Bracket Included
Additional Information
Accessory Type: |
Infrared Illuminators
|
Environmental: |
Outdoor
|
Warranty: |
Life-time Warranty
|
