Description
Axton AT-56S.56S2890 56W Smart Series IR Illuminator, 90 degree
The Smart AT-56S IR Illuminator allows seamless and precise integration via input output (I/O) ports. Sync with a camera or any other system device with I/O capability. For easy “plug-and-play” integration, automatic DAY/NIGHT switch turns IR ON/OFF, based upon lighting conditions.
Key Features:
- Wavelength – 850nm Infrared
- Outdoor IP67 Rated
- Angle/Coverage : 90˚

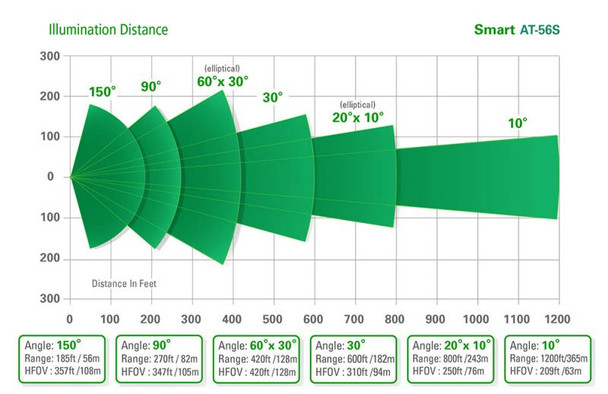

- Illumination Range: up to 1,200ft. (10˚)
- Power Consumption - 56 Watts
- Input Voltage - 24-36V DC or 24V AC
- I/O Ports for Seamless Integration
- Automatic Day/Night Switch
- Rugged Construction – Vandal Resistant
- Designed and Manufactured in the USA
- Lifetime Warranty with Advanced Replacement
- Pan/Tilt U Bracket Included
Downloads
Datasheet
Axton-AT-56S.56S2890-Datasheet-A1
Quick Start Guide
Axton-AT-56S.56S2890-Quick-Start-Guide-A1
Specifications
| Wavelength | 850nm Infrared |
| Input Voltage | 24-36V DC or 24V AC |
| Power Consumption | 56 Watts |
| Operating Temperature | -58° to 140°F / -50° to 60°C |
| Dimensions | 6.25” x 3.5” x 9.25”/ 159 x 89 x 235mm |
| Weight | 5 lbs / 2.2kg. |
| Environmental | Outdoor IP67 Rated |
| Mounting | Pan/Tilt U-bracket |
Additional Information
|
Accessory Type:
|
Infrared Illuminators
|
|
Angle (degree):
|
90
|
|
Dimensions:
|
159 x 89 x 235 mm (6.25 x 3.5 x 9.25 in)
|
|
Durability:
|
Vandal Resistant
|
|
Environmental:
|
Outdoor
|
|
Input Voltage:
|
24VAC
|
|
Made in:
|
United States (USA)
|
|
Max Power Consumption:
|
56 Watts
|
|
Warranty:
|
Life-time Warranty
|
|
Wavelength (nm):
|
850
|
