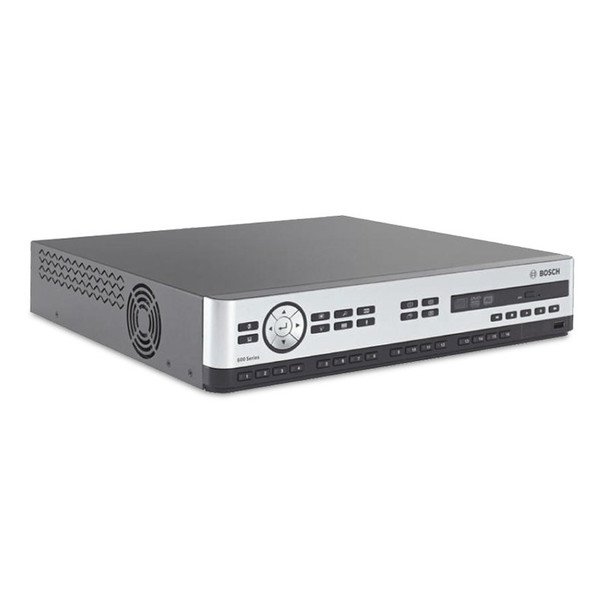

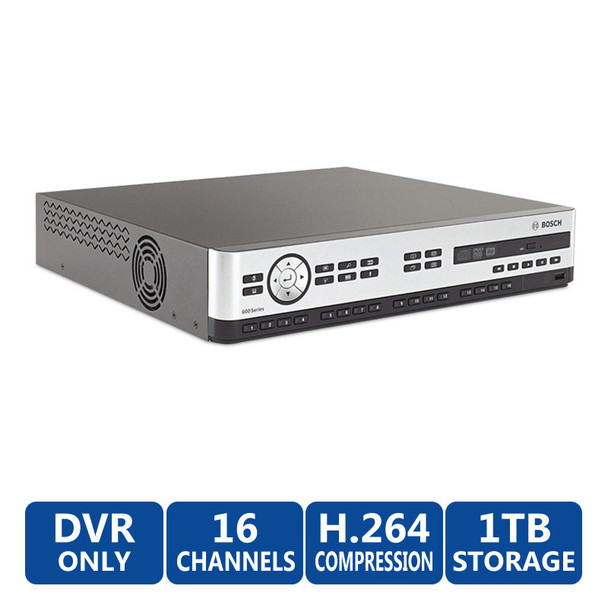

Bosch DVR-650-16A100 16 Channel Digital Video Recorder - 1TB HDD included

Brand: Bosch
Part Number: DVR-650-16A100
Write a Review
  • Bosch DVR-650-16A100 16ch Digital Video Recorder (1TB)
  • Bosch DVR-650-16A100 16-channel 1TB Digital Video Recorder
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Pre-Installed Storage : 1 TB

Customers Also Viewed


Bosch DVR-650-16A100 16 Channel Digital Video Recorder

Ideal for your surveillance needs, the Bosch DVR-650-16A100 16-channel 1TB Digital Video Recorder uses H.264 compression technology to minimize the bandwidth consumed without sacrificing the image quality. It records up to 25 (PAL)/30 (NTSC) images per second, per channel at CIF resolution. The two monitor outputs not only provide full-screen, quad, multi-screen and sequenced viewing, but also support VGA 16:9, 16:10, and 4:3 aspect ratios. This video recorder has an integrated Control Center software to allow hassle-free management of the remote recorders. It enables live multi-screen viewing, recording, playback and remote streaming at the same time.

The DVR-650-16A100 features Real Time Streaming Protocol (RTSP) that enables live display support from mobile devices. Its motion detection feature helps to identify the presence of movement in the scene while the Smart Search feature lets you search for motion within the recordings. Equipped with video loss detection capabilities, the Bosch DVR-650-16A100 16-channel 1TB Digital Video Recorder intelligently detects the loss of signal from the camera, thereby ensuring high performance.

Key Features:

  • RS-485 Serial Communication: to control the Bosch and third-party PTZ (Pan/Tilt/Zoom) cameras
  • 1TB Capacity: capable of storing large amount of data
  • Built-in DVD Burner: allows for the use of a DVD writer to archive the footages
  • Smart Search: enables the search for motion within recorded images
  • Control Center Software: lets you easily control the DVR
  • H.264 Compression Technology: ensures high-quality images and saves storage space
  • Operating system: Windows XP, Windows Vista or Windows 7
  • Web browser: Internet Explorer 7, 8 or 9
  • Processor: Intel Core Duo 2.0GHz or comparable
  • RAM memory: 2048 MB
  • Free disk space: 10 MB
  • Graphics card: NVIDIA GeForce 8600 or better
  • Video memory: 256 MB
  • Network interface: 10/100-BaseT
  • External power adapter AC input: 110-240 VAC; 50/60 Hz; 1.8 A
  • External power adapter DC output: 12VDC; 5 A
  • DVR Power input: 12VDC; 3.5 A; 145 BTU/h
  • Inputs: Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
  • AGC: Automatic gain adjustment for each video input
  • Hard Disks: Supports up to 2 SATA hard drives maximum 2TB each
  • Recording Quality: Best, High, Normal, Low, Lowest
  • Average Recording Capacity 4CIF, Normal, 6.25/7.5 IPS: PAL- 93 hours, NTSC-115 hours
  • Video Outputs Monitor: A-VGA RGB, Monitor B-VGA RGB
  • Live Resolution (Mon.A): 800x600 (4:3), 1024x768 (4:3), 1280x1024 (5:4), 1366x768 (16:9), 1440x900 (16:10)
  • Digital Zoom: 2 times
  • Streaming video: H.264 compression
  • Audio Inputs: Mono RCA, 1.0 Vpp
  • Audio Output: Mono RCA, 1.0 Vpp
  • Compression: ADPCM
  • Sample rate: 16 kHz per channel
  • Bit rate: 8-bit
  • Inputs: 8 or 16 inputs configurable NO/NC, max. input voltage 15 VDC
  • Outputs: 4 Relay outputs, configurable NO/NC, max. rated 30 VAC, 40 VDC 0.5 A continuous or 10 VA
  • RS485: Output signals according to RS485, max. signal voltage -8 to +12 V
  • RS485 Support: Bosch domes, and Pelco P and D
  • Video Inputs: 8 or 16 looping BNC, auto termination
  • Monitor: 2 VGA D-SUB
  • Alarm connectors: Screw terminal inputs, cable diameter AWG26-16 (0.13-1.5 mm)
  • Ethernet: RJ45, 10/100 BaseT according to IEEE802.3
  • RS485: Screw terminal output, cable diameter AWG28-16 (0.08-1.5 mm)
  • USB 2.0: One front and one rear USB connector for mouse or USB memory device
  • Display Modes Monitor A: Full, quad, multi-screen (live and playback), full sequence, alarm call-up (live)
  • Display Modes Monitor B: Full, quad, multi-screen, full sequence, alarm call-up (live)
  • Normal partition: Continuous recording (with or without overwriting)
  • Event partition: Input and motion recording (with or without overwriting)
  • Dimensions (WxDxH): 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in) excluding cabling
  • Weight: 4.3 kg (9.46 lb) approx.
  • Temperature Operating: +0°C to +40°C (+32°F to +104°F)
  • Temperature Storage: -40°C to +70°C (-40°F to +158°F)
  • Humidity Operating: <93% non-condensing
  • Humidity Storage: <95% non-condensing

Additional Information

Channel Capacity:
16 Channels
Pre-Installed Storage:
1 TB
Recorder Technology:
Digital Video Recorder (DVR)
3-year Manufacturer Warranty
