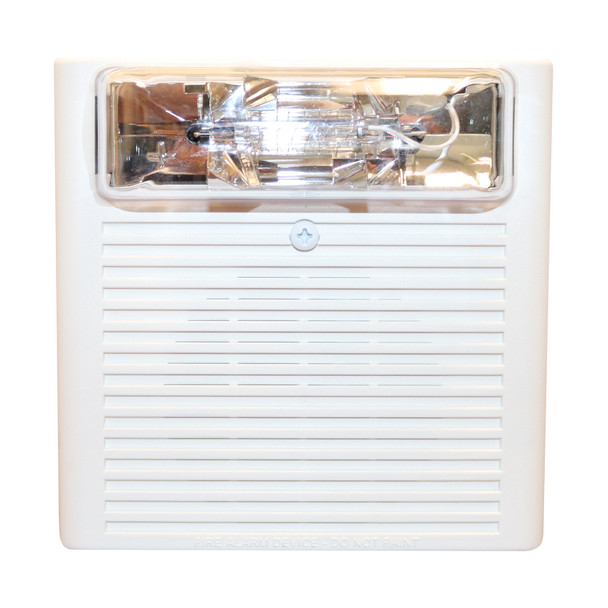

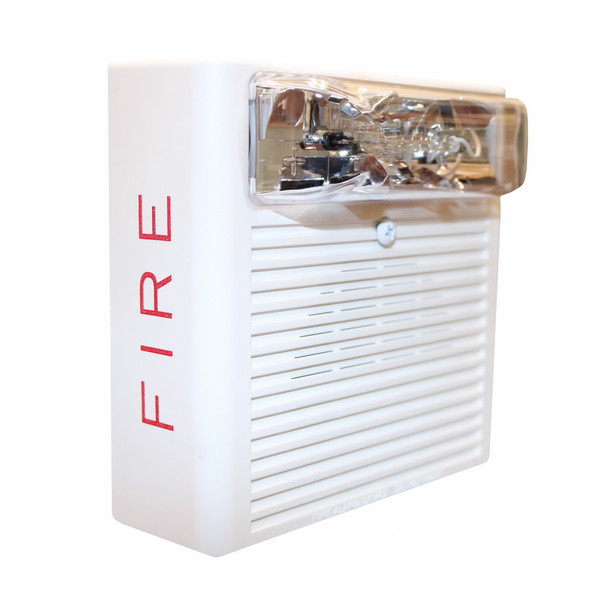

Bosch ASWP-2475C-FW Weatherproof Ceiling Mount 24VDC Horn Strobe, White

Bosch ASWP-2475C-FW Weatherproof Ceiling Mount 24VDC Horn Strobe, White

The Wheelock ASWP Weatherproof Horn Strobes consists of 24 V, square horn strobes for use with a WPBB‑R Weatherproof Back Box in outdoor and extreme environment applications. The family includes wall and ceiling mount models. The strobe is listed as 75 cd on axis at -31°F (‑35°C). Choose between continuous horn or temporal pattern (Code 3) tone when constant voltage from the fire alarm control panel (FACP) is applied. Each tone has three fieldselectable volume levels. Synchronize these horn strobes with the SM (single) or DSM (dual) modules or a compatible control panel. The audible response can be silenced while maintaining strobe activation, a requirement in some jurisdictions.

Key Features:

• 24 VDC, filtered or unfiltered
• Ceiling mount models
• Selectable continuous horn or temporal (Code 3) tones each with three selectable volume settings
• Synchronize with SM and DSM modules
• Cost‑efficient two‑wire operation with low profile design
• Suitable for outdoor use when mounted on a WPBB back box
