Description

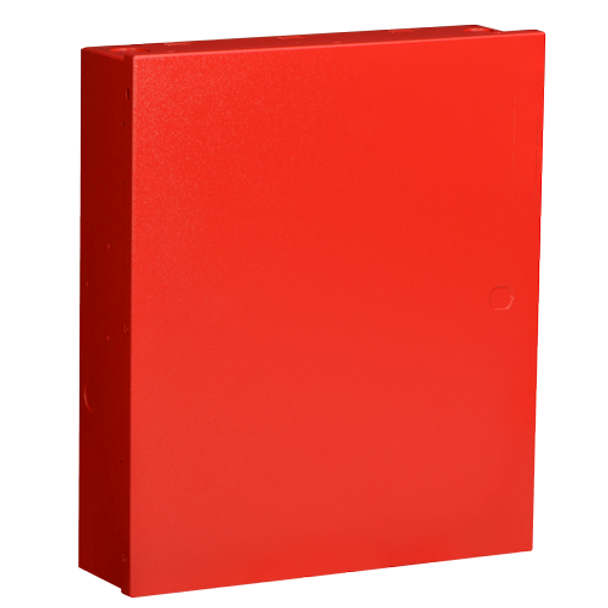

Bosch B11R Small Control Panel Enclosure, Red
The B11R Small Control Panel Enclosure is a red enclosure made of cold-rolled steel that is 0.7 mm (23 gauge) thick. It houses any different Bosch control panels and modules. The enclosure holds one battery (up to 7 Ah).
It is compatible with the following accessories:
- D101 Lock and Key Set. Standard lock set with one key supplied. Uses the D102 (#1358) replacement key.
- D110 Tamper Switch. Screw-on tamper switch that fits all enclosures. Shipped in packages of two.
- ICP-EZTS Dual Tamper Switch. Combination tamper switch with a wire loop for additional tamper outputs.
Key Features:
- Easy to install standoff locations for mounting supporting modules
- Made with cold-rolled steel with a red matte finish for fire applications
- Easy access mounting locations for optional transformers
Downloads
Datasheet
Bosch-B11R-Datasheet-A1
Popular Search
Compatible products
Additional Information
|
Accessory Type:
|
Housing Enclosure
|
|
Alternative SKUs:
|
F.01U.309.511
|
|
Color:
|
Red
|
|
Dimensions:
|
278 x 259 x 83 mm (10.9 x 10.2 x 3.3 in)
|
|
Environmental:
|
Indoor
|
|
Housing Type:
|
Enclosure
|
|
Manufacturer Website:
|
https://www.boschsecurity.com/us/en/
|
|
Material:
|
Steel
|
