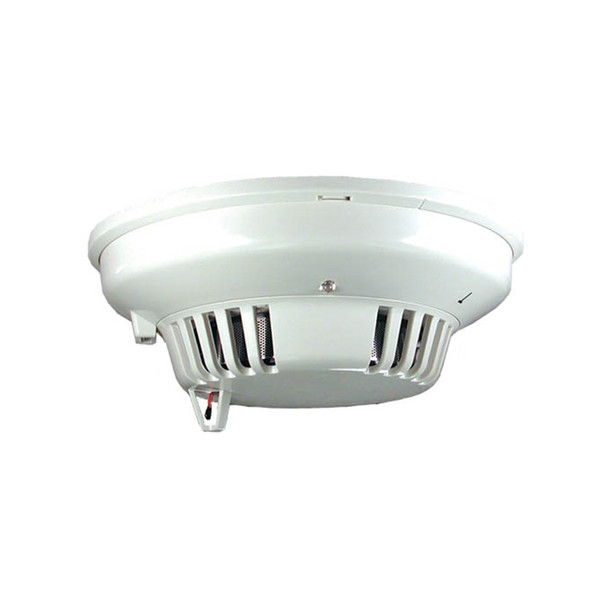

Bosch D263TH Two‑wire Photoelectric Smoke Detector with Heat Sensor

(No reviews yet) Write a Review
SKU:
D263TH
Maximum Purchase:
1000 units
$49.99
Frequently bought together:

Description

Bosch D263TH Two‑wire Photoelectric Smoke Detector with Heat Sensor

These detector models use an infrared (IR) LED light source and a silicon photodiode to measure light in a chamber. A fine screen covers the chamber to deter insects and to reduce dust accumulation and nuisance alarms.

During a fire, smoke particles reflect light onto the photodiode. When the photodiode measurements exceed the alarm threshold, the detector signals an alarm condition. After the alarm condition clears, interrupt power at the control panel to reset the detector.

Use a D132B Reversing Relay Module to activate the sounder (85 dB at 10 ft [3 m]). When using a D132B, the LED does not latch on alarm.

Key Features:

  • Two‑wire photoelectric smoke detector with a 135°F (57°C) heat sensor.
  • 12 V or 24 V input
  • Designed for commercial or residential use
  • Two-wire application
  • Light-emitting diodes (LEDs) indicate the status of the chamber, power, and alarm
  • Removable terminal block to simplify wiring connections
  • Cable connection point for voltmeter sensitivity test
  • Trim Plate TP280 for retrofit and remodeling purposes
Chamber Calibration Tests

Check the sensitivity and calibration of any of these detectors using a visual check, a magnet test, or a voltage measurement test.

Visual check:

When the detector’s calibration is within the factory- listed range, the red alarm LED flashes once every 3.5 sec. If the detector’s calibration is out of range for more than 24 h, the red alarm LED flashes once a second.

Magnet test:

Hold a magnet horizontally against the detector for about 10 sec and observe the LED.

  • If the detector is within the factory-listed calibration range, it goes into alarm and the Alarm LED latches on.
  • If the detector is too sensitive, the LED rapidly flashes six times (once every half second) and the detector signals an alarm.
  • If the detector is not sensitive enough, the LED slowly flashes four times, once every 2 seconds, and the detector signals an alarm.
  • If the detector does not operate, it does not signal an alarm.

Voltage measurement test:

Use a D1005 Test Cable and a digital voltmeter to measure the voltage and compare the results with the factory-listed sensitivity range.
