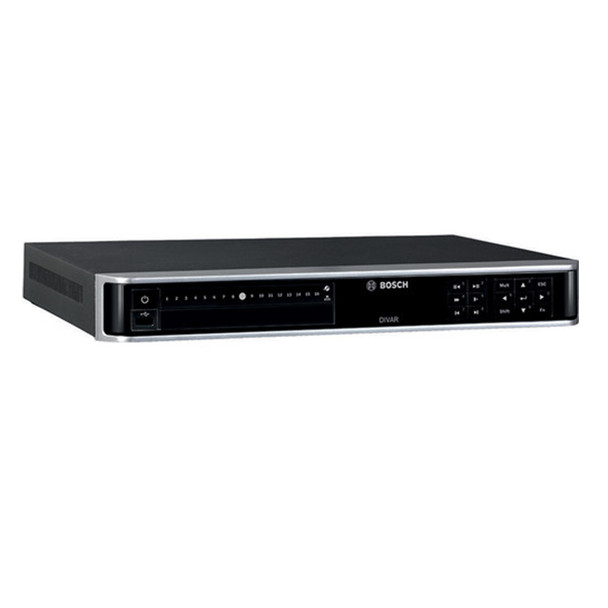

Bosch DDH-3532-200N00 16 Analog / 16 IP Hybrid Digital Video Recorder - No HDD included

Brand: Bosch
Part Number: DDH-3532-200N00
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Bosch Video Recorders
Discontinued
  • Bosch DDH-3532-200N00 16 Analog / 16 IP Hybrid Digital Video Recorder - No HDD included
  • Bosch DDH-3532-200N00 16 Analog / 16 IP Hybrid Digital Video Recorder - No HDD included
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.264, MJPEG,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x VGA 2x HDMI
  • Max. Recording Resolution : 12MP (4K)
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 12 TB Storage Capacity
  • Number of PoE Ports : 2 PoE Ports

Related Products

Description

Bosch DDH-3532-200N00 16 Analog / 16 IP Hybrid Digital Video Recorder

The DIVAR hybrid recorders can simultaneously record and view video from traditional analog cameras as well as the latest IP cameras. The recorder can be connected to the following camera configurations:

  • a maximum 32 IP cameras recording at resolutions up to 12MP
  • a maximum 16 analog cameras recording at resolutions up to 960H
  • a combination of maximum 16 analog cameras and maximum 16 IP cameras

These advanced technologies, coupled with efficient network data transmission, deliver the high security and reliability required for modern surveillance systems. Simultaneous remote or local monitoring, recording, archive and playback functions are guided by simple menu selections and operator commands. The recorders can be installed with a maximum of 2 internal HDDs for video storage. Another option is a single HDD for storage, plus a DVD burner for video export.

Key features:

  • Hybrid recording of up to 16 IP and 16 analog channels
  • No HDD included
  • Compact, sturdy and stylish design
  • 12 MP IP camera support for view and playback
  • Separate internet and IP camera networks

Downloads

Popular Search

Bosch Video Recorders

Additional Information

4K Support:
4K Supported
Channel Capacity:
32 Channels
Compression:
H.265 H.264 MJPEG
Hard Drive Ports:
2 SATA Ports
Manufacturer Website:
https://www.boschsecurity.com/us/en/
Max. Incoming Bandwidth:
24Mbps
Max. Recording Resolution:
12MP (4K)
Max. Storage Capacity:
12 TB
Number of PoE Ports:
2 PoE Ports
Outgoing Bandwidth:
128 Mbps
Pre-Installed Storage:
No HDD included
Recorder Technology:
Hybrid Recorder (DVR and NVR)
Video Output:
1x VGA 2x HDMI
Warranty:
3-year Manufacturer Warranty
