Description

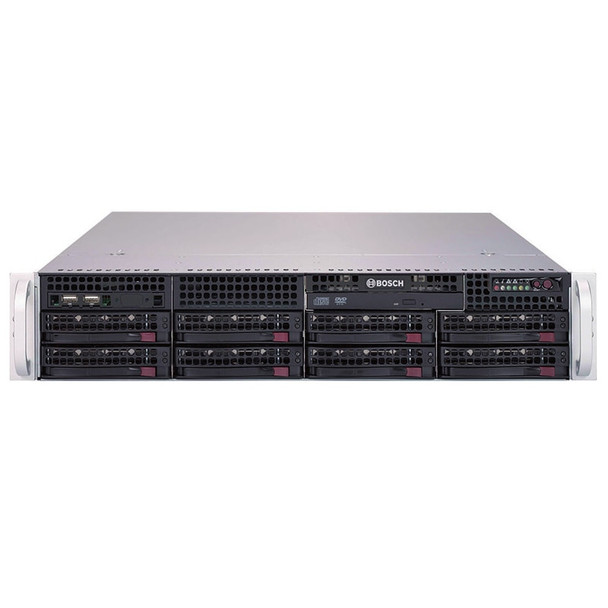

Bosch DIP-6184-8HD DIVAR IP 6000 All-in-one Recording Management Solution with 8x4 TB HDD
The DIVAR IP 6000 family is an affordable, simple and reliable all-in-one recording management solution for network surveillance systems. The DIVAR IP 6000 systems are shipped as pre- configured storage array for the Bosch video recording solution with the Video Recording Manager software not yet installed. Once the software has been downloaded from the Bosch product catalog and installed on DIVAR IP 6000 it will start with 64 channels pre-licensed and is upgradeable up to 128 channels.
Powered by Video Recording Manager software from Bosch, DIVAR IP 6000 is an intelligent IP storage device that eliminates the need for separate NVR (Network Video Recorder) server and storage hardware, reducing the total cost of ownership by as much as 45%.
DIVAR IP 6000 2U is a 2HU rack mount unit that combines advanced recording management and state- of-the-art iSCSI storage into a single cost-effective, plug and play IP recording appliance for IT-minded customers which are seeking for a state-of-the-art “second generation” NVR recording solution.
The DIVAR IP 6000 family utilizes an energy efficient, embedded design which reduces possible points of failure and boasts Bosch quality through-and-through. Utilizing “enterprise-rated” hard drives in a fault tolerant RAID-5 configuration, dual port Gigabit Ethernet network interfaces, 8 GB system memory and a latest Intel Quad Core E3-1275 V3 Processor (3.5GHz, 8 MB Cache), the new models of the DIVAR IP 6000 family deliver high-end performance at a very affordable price.
Easy to install, the system fully integrates into Bosch Video Management System and Video Recording Manager wizard-based set-up and centralized configuration to reduce installation times by as much as 45%. All components relevant to the usage of DIVAR IP 6000 as storage array in a Bosch recording solution are pre-installed and pre- configured. Simply connect to the network and power the unit up — DIVAR IP 6000 is ready to begin recording straight out-of-the-box. To create a complete video recording management solution, just download and add Video Recording Manager.
Key features:
- RAID-5 protected (standard configuration), all-in-one recording solution for up to 128 channels
- Pre-installed, pre-configured IP storage solution with up to 64 TB storage capacity
- Hot-swappable hard drives
- Remote monitoring via desktop application, browser or SNMP
- 3 years warranty, including next business day services
- Video Recording Manager software not pre-installed,
- 8 x 4 TB storage capacity
- 8 Trays, SATA-3, 7200 RPM, 64 MB, 3.5"
- 8 GB, DDR3-1666 ECC UNB (1 x 8 GB)
- 2U chassis
Popular Search
Additional Information
Alternative SKUs:
|
F.01U.308.455
|
Channel Capacity:
|
64 Channels
|
NDAA Compliance:
|
NDAA Compliant
|
Pre-Installed Storage:
|
32 TB
|
Product Series:
|
DIVAR IP 6000
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
Warranty:
|
3-year Manufacturer Warranty
|
