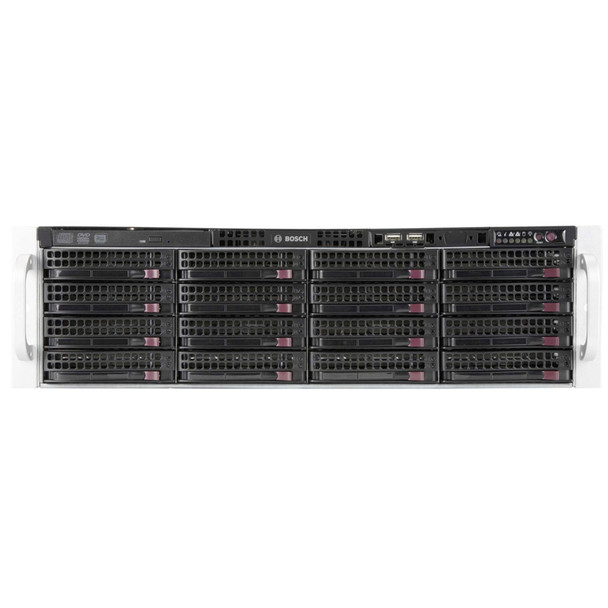

Bosch DIP-73G8-16HD All-in-one Recording Viewing and Management Appliance, 128TB, 3U

Brand: Bosch
Part Number: DIP-73G8-16HD
Write a Review
$20,769.00
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Pre-Installed Storage : 128 TB
  • Max. Recording Resolution : 4K
  • Hard Drive Ports : 16 SATA Ports
  • Max. Storage Capacity : 192 TB Storage Capacity

Description

Bosch DIP-73G8-16HD All-in-one Recording Viewing and Management Appliance, 128TB, 3U

The DIVAR IP all-in-one 7000 family is an affordable, simple and reliable all-in-one recording, viewing and management solution for network surveillance systems of up to 256 channels (with 8 channels pre- licensed).

DIVAR IP all-in-one 7000 3U is a 3HU rack mount unit that combines advanced management and state-of- the-art recording management into a single cost- effective, plug-and-play IP recording appliance for IT- minded customers.

The DIVAR IP all-in-one 7000 family utilizes an energy efficient, embedded design which reduces possible points of failure and boasts Bosch quality through- and-through. Utilizing “enterprise-rated” hard drives in a fault tolerant RAID-5 configuration, dual port Gigabit Ethernet network interface, 16 GB system memory and an Intel Xeon Hexa Core Processor, the device delivers high-end performance at a very affordable price.

Easy to install and operate, the system features wizard-based set-up and centralized configuration. Simply connect to the network and power the unit up - DIVAR IP all-in-one 7000 is ready to begin recording straight out of the box.

BVMS manages all IP and digital video and audio, plus all the security data being transmitted across your IP network. It seamlessly combines IP cameras and encoders, provides system-wide event and alarm management, system health monitoring, user and priority management.

Key Features:

  • RAID-5 protected (standard configuration), all-in-one video management solution for up to 256 channels
  • Out-of-the-box IP video management solution with up to 192 TB storage capacity
  • Instantly find what you are looking for
  • Advanced user and alarm management
  • 3 years hardware warranty, including next business day services
IT Management

Microsoft Windows Server IoT 2019 for Storage Standard provides a simple, intuitive user interface for system configuration and unified appliance management. Administrators and IT professionals will appreciate the ability to manage DIVAR IP all-in- one 7000 systems using the built-in Microsoft Windows Admin Center. The ability to use one central tool for configuration and operations management reduces installation and training requirements, and helps keep ongoing system management costs low. In addition, the DIVAR IP all-in-one 7000 system offers advanced monitoring and management options using the Intelligent Platform Management Interface (IPMI).

Monitoring

The DIVAR IP all-in-one 7000 family provides SNMP, Remote Desktop and HTTP monitoring support for the system’s hardware and for the video management applications.

Increased reliability of high-availability hardware, embedded design as well as system-wide monitoring and management ensure maximum uptime.

Instant real time access to video

View high quality HD and even UHD video despite low or limited bandwidth connections. Dynamic Transcoding technology ensures you can view your video immediately - anytime, anywhere. The built-in transcoder supports up to 2 x UHD resolution video streams in parallel.

Management

DIVAR IP Software Center provides a central user interface for software setup, upgrade and operation mode selection, which reduces installation and training requirements and keeps ongoing system management costs low.

Remote viewing

For remote viewing of a single DIVAR IP all-in- one 7000 system, BVMS Operator Client is included. For multiple systems, add them to BVMS Enterprise Management Server.

Alternatively, use Video Security Client for viewing video from a separate workstation or mobile device.

Downloads

Additional Information

Alternative SKUs:
F.01U.385.544
Channel Capacity:
256 camera channels
Hard Drive Ports:
16 SATA Ports
Languages:
English
Max. Recording Resolution:
4K
Max. Storage Capacity:
192 TB
NDAA Compliance:
NDAA Compliant
Operating System:
Windows Server IoT 2019
Operating Temperature:
10 °C to 35 °C (50 °F to 95 °F)
Power Consumption:
331 Watts
Power Supply:
100 to 240 V AC
Pre-Installed Storage:
128 TB
Processor (CPU):
Intel Xeon E-2226GE 3.40 GHz
Product Series:
DIVAR IP all-in-one 7000
RAID:
RAID 5
RAM:
16GB
RAM Type:
DDR4
Rack Unit (U):
3U
Recorder Technology:
Video Server
Storage Temperature:
-40 °C to 70 °C (-40 °F to 158 °F)
Warranty:
3-year Manufacturer Warranty
