Description

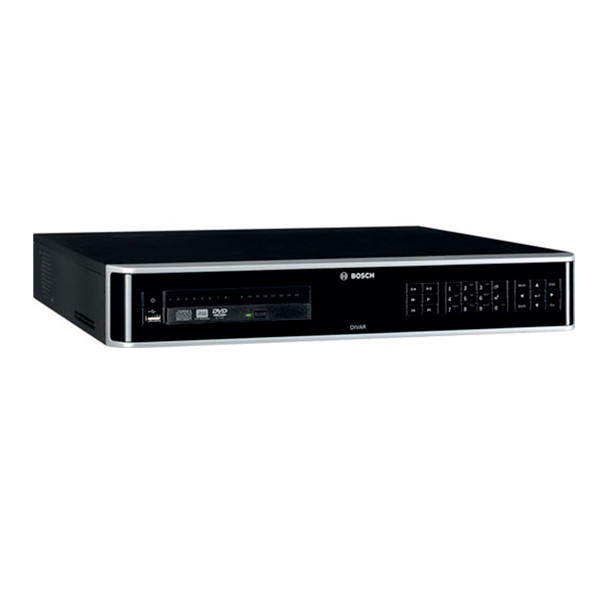

Bosch D 16 Channel Analog DVR/IP/NVR Hybrid Recorder
The DIVAR hybrid recorders can simultaneously record and view video from traditional analog cameras as well as the latest IP cameras. The recorder can be connected to the following camera configurations:
- A maximum 32 IP cameras recording at resolutions up to 12MP
- A maximum 16 analog cameras recording at resolutions up to 960H
- A combination of maximum 16 analog cameras and maximum 16 IP cameras
These advanced technologies, coupled with efficient network data transmission, deliver the high security and reliability required for modern surveillance systems. Simultaneous remote or local monitoring, recording, archive and playback functions are guided by simple menu selections and operator commands. The recorders can be installed with a maximum of 4 internal HDDs for video storage. Another option is two HDDs for storage, plus a DVD burner for video export.
Key features:
- Hybrid recording of up to 16 IP and 16 analog channels
- No HDD Included
- Extended rack-mount unit with advanced connections
- 12 MP IP camera support for view and playback
- Separate internet and IP camera networks
- RAID 1 and 5 support
Downloads
Popular Search
Additional Information
|
Channel Capacity:
|
16 Channels
|
|
Compression:
|
H.264
H.265
|
|
Hard Drive Ports:
|
4 SATA Ports
|
|
Manufacturer Website:
|
https://www.boschsecurity.com/us/en/
|
|
Max. Recording Resolution:
|
12MP (4K)
|
|
Max. Storage Capacity:
|
24 TB
|
|
Number of PoE Ports:
|
16 PoE Ports
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Product Series:
|
Bosch DIVAR Hybrid 5000 Series
|
|
Rack Unit (U):
|
1.5U
|
|
Recorder Technology:
|
Hybrid Recorder (DVR and NVR)
|
|
Video Output:
|
1x VGA
2x HDMI
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
e-SATA:
|
e-SATA
|
