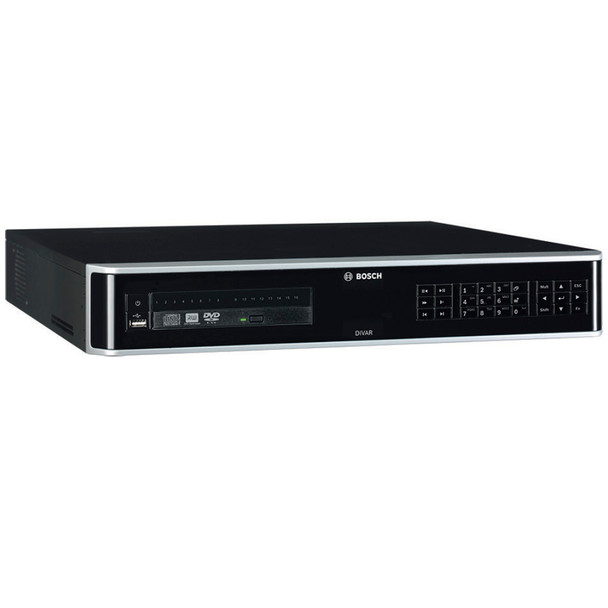

Bosch DRH-5532-414N00 DIVAR hybrid 5000 16 Channel Hybrid Video Recorder - 16ch IP/16ch Analog, 4TB, 1.5U

Brand: Bosch
Part Number: DRH-5532-414N00
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check the other awesome products:
Discontinued
  • Bosch DRH-5532-414N00 DIVAR hybrid 5000 16 Channel Hybrid Video Recorder - 16ch IP/16ch Analog, 4TB, 1.5U
  • 3 Years Limited Manufacturer Warranty
$1,323.25
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, MJPEG, H.264,
  • Pre-Installed Storage : 4 TB
  • Video Output : 1x VGA 2x HDMI
  • Hard Drive Ports : 4 SATA Ports
  • Max. Storage Capacity : 24 TB Storage Capacity
  • Number of PoE Ports : 16 PoE Ports

Customers Also Viewed

Discontinued
Bosch NTI-51022-A3S 2MP IR Outdoor Bullet IP Security Camera

Bosch NTI-51022-A3S 2MP IR Outdoor Bullet IP Security Camera

NTI-51022-A3S
$392.01
  • Compression : MJPEG, H.264,
  • Field of View (Horizontal) : 33°Field of View 100°Field of View
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 2.8~12mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : IP66 IK08
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/2.8"
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
2MP 2MP
98 98 Night Vision
White White
Discontinued
Bosch NBE-4502-AL 2MP H.265 Outdoor Bullet IP Security Camera

Bosch NBE-4502-AL 2MP H.265 Outdoor Bullet IP Security Camera

NBE-4502-AL
$392.85
  • Compression : H.265, H.264, MJPEG,
  • Field of View (Horizontal) : 33°Field of View 100°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 2.8~12mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Max. Storage Capacity : 2TB Storage Capacity
  • Protection Code : IP67
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/2.8"
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
2MP 2MP
196 196 Night Vision
White White
Discontinued
Bosch NDP-4502-Z12 2MP H.265 Indoor PTZ Dome IP Security Camera

Bosch NDP-4502-Z12 2MP H.265 Indoor PTZ Dome IP Security Camera

NDP-4502-Z12
$701.05
  • Compression : MJPEG, H.264, H.265,
  • Field of View (Horizontal) : 4°Field of View 58°Field of View
  • Max. FPS and Resolution : 60fps at 1080P
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 5.3~64mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Max. Storage Capacity : 2TB Storage Capacity
  • Color : White
  • Environmental : Indoor
  • Sensor Size : 1/2.8"
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
2MP 2MP
White White
Discontinued
Bosch NDP-5502-Z30 2MP H.265 Outdoor PTZ Dome IP Security Camera

Bosch NDP-5502-Z30 2MP H.265 Outdoor PTZ Dome IP Security Camera

NDP-5502-Z30
$1,235.99
  • Compression : MJPEG, H.264, H.265,
  • Field of View (Horizontal) : 60°Field of View 2°Field of View
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 4.5~135mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Max. Storage Capacity : 2TB Storage Capacity
  • Protection Code : IP66 IK10
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/2.8"
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
2MP 2MP
White White
Discontinued
Bosch NDN-50022-A3 2MP Outdoor Dome IP Security Camera - 3~10mm Lens

Bosch NDN-50022-A3 2MP Outdoor Dome IP Security Camera - 3~10mm Lens

NDN-50022-A3
$385.01
  • Compression : H.264, MJPEG,
  • Field of View (Horizontal) : 36°Field of View 117°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 3~10mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Protection Code : IK10 IP66
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/2.7"
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
2MP 2MP
White White
Discontinued
LTS LTN8704Q-P4 4 Channel 4K Network Video Recorder, HDD Options available

LTS LTN8704Q-P4 4 Channel 4K Network Video Recorder, HDD Options available

LTN8704Q-P4
$173.20
  • Compression : H.264, H.264 Plus, H.265, H.265 Plus, MPEG4,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x HDMI 1x VGA
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 1 SATA Port
  • Max. Storage Capacity : 6 TB Storage Capacity
  • Environmental : Indoor
Network Video Recorder (NVR) Network Video Recorder (NVR)
Discontinued
LTS LTD8516K-ST 16-Channel H.265+ HD-TVI Digital Video Recorder

LTS LTD8516K-ST 16-Channel H.265+ HD-TVI Digital Video Recorder

LTD8516K-ST
$491.94
  • Compression : H.265, H.265 Plus, H.264, H.264 Plus,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x HDMI 1x VGA
  • Max. Recording Resolution : 5MP
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 16 TB Storage Capacity
Free shipping over $300 Free Shipping
Digital Video Recorder (DVR) Digital Video Recorder (DVR)
Geovision GV-SNVR0812 8-Channel 4K Network Video Recorder - No HDD Included

Geovision GV-SNVR0812 8-Channel 4K Network Video Recorder, No HDD Included

GV-SNVR0812
$249.08
  • Compression : H.264, H.265,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x HDMI 1x VGA
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 1 SATA Port
  • Max. Storage Capacity : 10 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 8 PoE Ports
  • Power Budget : 100 Watt
Network Video Recorder (NVR) Network Video Recorder (NVR)
Black Black

Description

Bosch DRH-5532-414N00 DIVAR hybrid 5000 16 Channel Hybrid Video Recorder

The DIVAR hybrid recorders can simultaneously record and view video from traditional analog cameras as well as the latest IP cameras. The recorder can be connected to the following camera configurations:

These advanced technologies, coupled with efficient network data transmission, deliver the high security and reliability required for modern surveillance systems. Simultaneous remote or local monitoring, recording, archive and playback functions are guided by simple menu selections and operator commands. The recorders can be installed with a maximum of 4 internal HDDs for video storage. Another option is two HDDs for storage, plus a DVD burner for video export.

  • A maximum 32 IP cameras recording at resolutions up to 12MP
  • A maximum 16 analog cameras recording at resolutions up to 960H
  • A combination of maximum 16 analog cameras and maximum 16 IP cameras

The DIVAR supports H.264 video compression technology and is H.265-ready for the newest H.265 technology cameras to be released by Bosch. This technology dramatically reduces bandwidth and storage requirements while still delivering superb image and audio quality. Equipped with this newest video technology, DIVAR gives you the full benefits of the latest high-resolution cameras. The proof is in the pixels.

Smartphone App: A DIVAR Viewer App from Bosch for iOS and Android devices is available for:

  • live and playback viewing
  • recorder configuration
  • PTZ control

This means you can watch live video from cameras connected to the DVR from anywhere in the world. You can also control focus, pan, tilt and zoom on PTZenabled cameras.

Key Features:

  • 16 BNC for connecting max. 16 analog cameras
  • Max. 16 IP cameras connected with external switch (if no analog cameras are connected, an extra 16 IP cameras can be connected)
  • RJ45 Ethernet connection (10/100/1000Base-T according to IEEE802.3)
  • Two USB (3.0) connectors for mouse or USB memory device; one USB (2.0) also on front panel
  • Max. 4 SATA HDD, Max. capacity per HDD: 6 TB, Max. supported speed per HDD: 6 Gb/s
  • eSATA-connected storage device
  • Essential or Intelligent Video Analytics (IVA), Motion +
  • Built-in DVD+R/RW writer
  • H.265/H.264/MJPEG
  • iPhone, Android
  • Maximum incoming bandwidth: 320 Mbps
  • Maximum recording bandwidth: 256 Mbps

Downloads

Additional Information

Channel Capacity:
16 Channels
Compression:
H.265 MJPEG H.264
Hard Drive Ports:
4 SATA Ports
Max. Incoming Bandwidth:
320Mbps
Max. Storage Capacity:
24 TB
NDAA Compliance:
NDAA Compliant
Number of PoE Ports:
16 PoE Ports
Pre-Installed Storage:
4 TB
Product Series:
Bosch DIVAR Hybrid 5000 Series
Rack Unit (U):
1.5U
Recorder Technology:
Hybrid Recorder (DVR and NVR)
Video Output:
1x VGA 2x HDMI
Warranty:
3-year Manufacturer Warranty
e-SATA:
e-SATA
