Bosch F220-P Photoelectric Smoke Detector

Brand: Bosch
Part Number: F220-P
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Discontinued
Technical Support Technical Support
3 Year Warranty 3 Year Warranty

Description

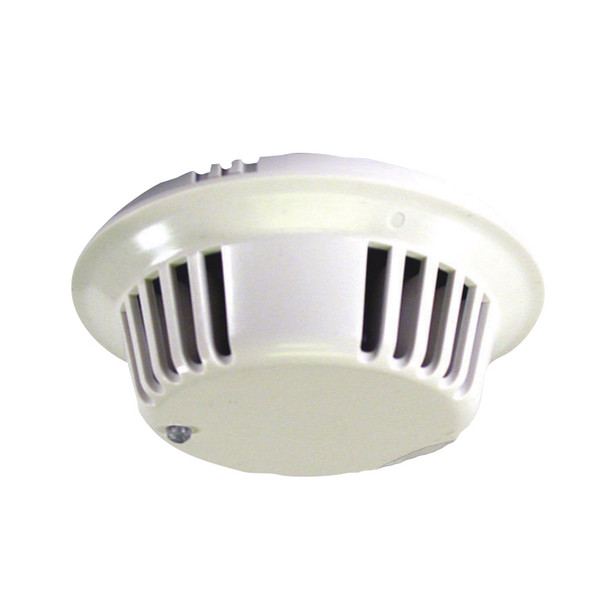

Bosch F220-P Photoelectric Smoke Detector

The F220 Photoelectric Smoke Detectors are UL Listed, open-area photoelectric smoke detectors. Use them with commercial fire protective signaling systems and household fire warning systems (see NFPA 72, the National Fire Alarm Code). These smoke detectors scatter light using a pulsed infrared source operating with a gated, high-speed, photodiode infrared sensor. The symmetry of the optical chamber allows 360° uniform smoke entry, but minimizes external light entry. The detectors use low current electronic circuitry, so they can connect to 12VDC nominal or 24 VDC nominal power source circuits.

Key features:

  • Photoelectric detector head only; requires base.
  • Two-wire or four-wire bases
  • 30ft (9 m) maximum spacing between detectors
  • Optional CO-sensor, heat-sensor enhanced detection chamber
  • Clean chamber without removal or disassembly
  • CleanMe signaling capability

Downloads

Additional Information

Accessory Type:
Detector
Alternative SKUs:
4.998.112.248
Compliance:
NDAA Compliant
Detector Type:
Photoelectric Smoke Detector Smoke Detector
Manufacturer Website:
https://www.boschsecurity.com/us/en/
Warranty:
3-year Manufacturer Warranty
