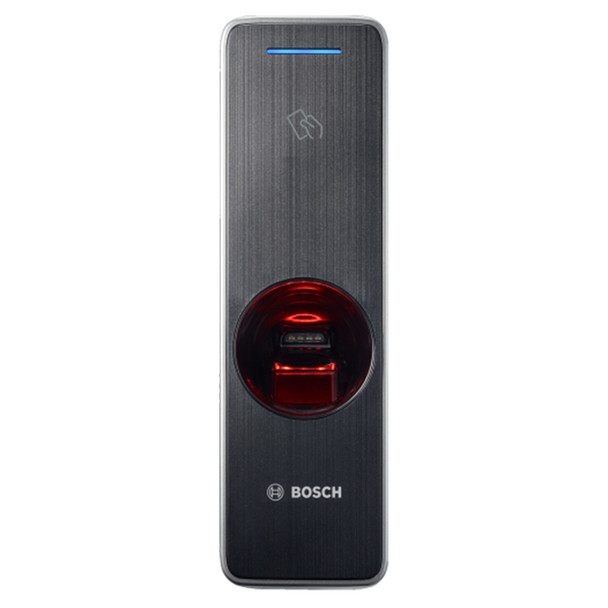

Bosch ARD-FPBEW2-H2 Fingerprint Reader, Multiclass

Brand: Bosch
Part Number: ARD-FPBEW2-H2
Write a Review
  • Bosch ARD-FPBEW2-H2 Fingerprint Reader, Multiclass
  • Bosch ARD-FPBEW2-H2 Fingerprint Reader, Multiclass
$900.38

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Protection Code : IK09 IP67
  • Material : Poly-carbonate
  • Environmental : Outdoor

Description

Bosch ARD-FPBEW2-H2 Fingerprint Reader, Multiclass

BioEntry W2 features class-leading reading performance that enhances user experience by offering fast matching and quick response for users. The integration with AMS and BIS/ACE management systems offers highest level of convenience due to the enrollment of fingerprints and management of card holder data in one system. To ensure data privacy and protection, the fingerprint templates can be securely stored in the database of the management system. This also ensures fast reading performance in good installation conditions of under 1 second for 1:1 matching (card plus fingerprint).

The BioEntry W2 is able to withstand a high level of impact, making it vandal-resistant. Coupled with IP67 ingress protection, BioEntry W2 is a perfect solution for outdoor applications. The device provides superior protection against invasive moisture, dust and even liquids.

Featuring dual-frequency RFID technology, BioEntry W2 supports both low frequency (125 kHz) and high frequency (13.56MHz) RFID standards in addition to the fingerprint as a credential. BioEntry W2 supports most types of RFID card standards with a single device including MIFARE, HID iCLASS, DESFire, HID Prox and EM.

BioEntry W2 features fake fingerprint prevention technology. Using dynamic pattern, liveness feature and unnatural feature analysis, the engine blocks fake fingerprints made from various materials including clay, rubber, glue, paper, film and others. BioEntry W2 is equipped with the ability to read Bosch coded Mifare credentials, ensuring a straightforward configuration and high level of security.

Key Features:

  • Compatibility with AMS 2.0, BIS/ACE 4.5 and later versions, for easy enrollment and configuration of fingerprint templates as well as card data in one system
  • Highest security standard supporting OSDPv2 secure channel protocol and Bosch coded Mifare Desfire credentials
  • Flexibility due to Wiegand and OSDP support, and dual-frequency RFID technology supporting proximity cards and smart cards
  • Rugged IP67/IK09 housing for tough environment and outdoor installations
  • Class-leading reading performance with powerful quad-core CP technology
  • Integration with AMS and BIS/ACE 4.5 (and later versions) for easy enrollment and configuration of fingerprint templates and card data

Downloads

Additional Information

Card Compatibility:
EM HID Prox MIFARE classic MIFARE DESFire EV1 iCLASS HID Corporate-1000 iCLASS SE iCLASS Seos
Environmental:
Outdoor
Material:
Poly-carbonate
NDAA Compliance:
NDAA Compliant
Network Interface:
1x RJ-45 10M/100M Base-TX Ethernet
Operating Humidity:
0% to 80% (non-condensing)
Operating Temperature:
-20 °C to 50 °C (-4 °F to 122 °F)
PoE Standards:
IEEE 802.3af
Power Supply:
12 VDC
Processor (CPU):
Quad-core 1.2 GHz
Protection Code:
IK09 IP67
RAM:
256MB
Reader Type:
Fingerprint Card
Serial Interface:
1x RS485
Warranty:
3-year Manufacturer Warranty
