Bosch GCC24-CW Selectable Candela, Low Profile Evacuation Horn Strobe, White

Bosch GCC24-CW Selectable Candela, Low Profile Evacuation Horn Strobe, White

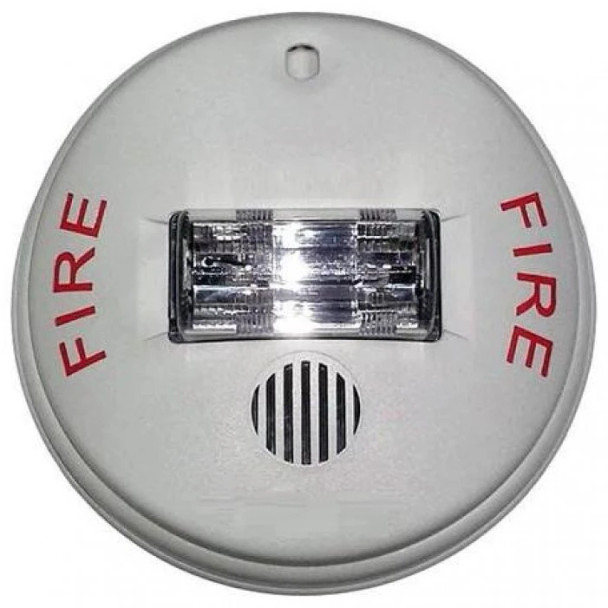

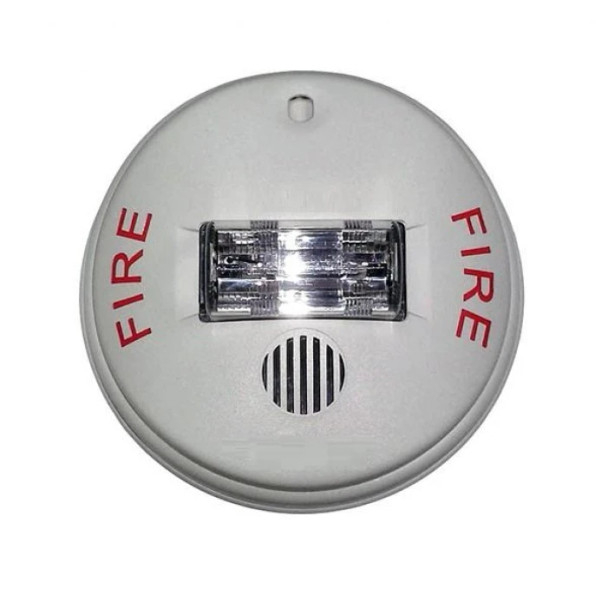

The Commander4 Series is a ceiling mount strobe or horn/strobe combination that offers dependable audible and visual alarms and the lowest current

consumption.

The GCS/GCC offers tamperproof field selectable candela options of 15, 30, 75, 95, 115 and 150 candela. The GCC horn offers a continuous or synchable temporal three in 2400Hz and mechanical tones. All tones are easy for the professional to change in the field by using switches.

Key Features

• Nominal voltage 24 VDC
• Tamperproof field selectable candela options of 15, 30, 75, 95, 115 & 150
• Unit Dimensions: 6” (15.24 cm) x 2.6” (6.604 cm)
• Super-Slide® Bracket, Ease of Supervision Testing
• Checkmate® Instant Voltage Verification
• Prewire entire system, install mounting bracket, then install signals
• Documented lower installation and operating costs
• Input terminals 12 to 18 AWG
• Horn/strobe switch selection for high or low dBA
• Horn/strobe switch selection for 2400Hz or mechanical tone
• Horn/strobe switch selection for continuous or temporal 3
• Synchronize strobe and/or horn with Gentex AVSM Control Module
• Silence audible while visual appliance will remain flashing
• Tamperproof re-entrant grill
• Surface mount with the GCSB (Gentex Ceiling Surface Mount Box)
• Faceplate available in red or off-white
• Ceiling mount
