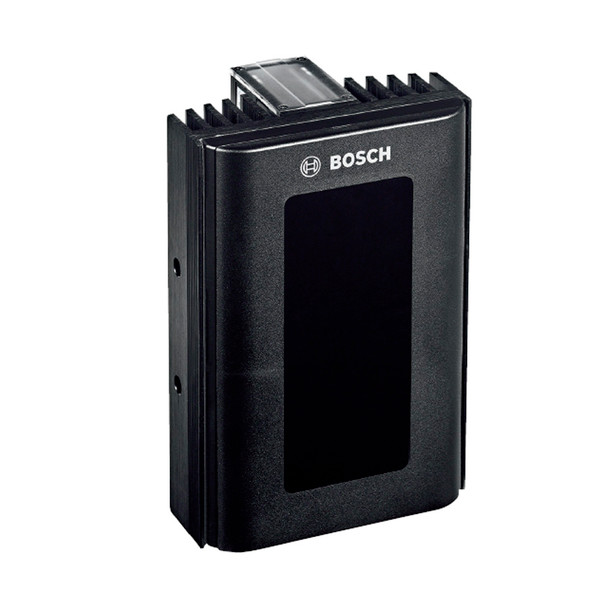

Bosch IIR-50850-LR 850nm Weatheproof Long Range IR Illuminator

(No reviews yet) Write a Review
SKU:
IIR-50850-LR
UPC:
8717332544271
Maximum Purchase:
1000 units
$778.00
$514.88
— You save $263.12
Frequently bought together:

Description

Bosch IIR-50850-LR 850nm Weatheproof Long Range IR Illuminator

The infrared illuminator provides covert or semi-covert lighting for medium-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates. The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost effective installations.

Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.

Key features of Bosch IIR-50850-LR

  • 850nm
  • Weatherproof
  • Power consumption 39 W
  • Power supply 12 to 32 VDC or 24 VAC
  • Integrated adjustable photocell
  • Adjustable IR intensity
  • Interchangeable beam pattern diffusers to match beam to camera
  • Telemetry input and photocell output for external switching
  • Self-cleaning lens coating technology

Ranges:

10º 268 m (881 ft) 47 m (154 ft)

20° 183 m (640 ft) 65 m (212 ft)

30º 134 m (440 ft) 72 m (236 ft)

60° 85 m (280 ft) 99 m (324 ft)

80° 61 m (200 ft) 102 m (336 ft)

95º 43 m (140 ft) 93 m (306 ft)

View AllClose

Additional Information

Accessory Type:
Infrared Illuminators
Color:
Black
Environmental:
Outdoor
Manufacturer:
Bosch
Product Type:
Accessories
Power Consumption (IR):
39 Watts
Wavelength (nm):
850
Datasheet:
