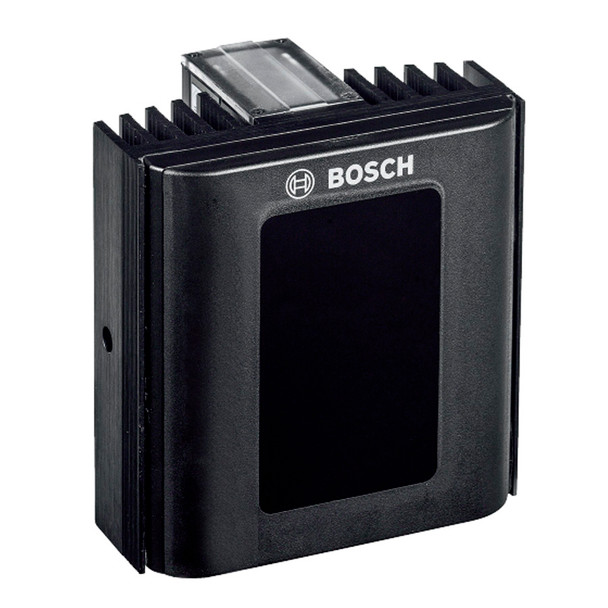

Bosch IIR-50850-MR 850nm Weatheproof Medium Range IR Illuminator

Brand: Bosch
Part Number: IIR-50850-MR
Write a Review

Help me pick a security camera

Free shipping over $300 Free Shipping
Fast Shipping Fast Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Color : Black
  • Environmental : Outdoor


Bosch IIR-50850-MR 850nm Weatheproof Medium Range IR Illuminator

The infrared illuminator provides covert or semi-covert lighting for medium-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates. The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost effective installations.

Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.

Key features:

  • 850nm
  • Weatherproof
  • Power consumption 26 W
  • Power supply 12 to 32 VDC or 24 VAC
  • Integrated adjustable photocell
  • Adjustable IR intensity
  • Interchangeable beam pattern diffusers to match beam to camera
  • Telemetry input and photocell output for external switching
  • Self-cleaning lens coating technology

Range 850 nm

  • 10 degree 220 m (722ft) 38 m (126ft)
  • 20 degree 150 m (492ft) 53 m (174ft)
  • 30 degree 110 m (361ft) 59 m (193ft)
  • 60 degree 70 m (230ft) 81 m (265ft)
  • 80 degree 50 m (164ft) 84 m (275ft)
  • 95 degree 35 m (115ft) 76 m (251ft)

Additional Information

Accessory Type:
Infrared Illuminators
Alternative SKUs:
NDAA Compliance:
NDAA Compliant
Power Consumption:
26 Watts
3-year Manufacturer Warranty
Wavelength (nm):
