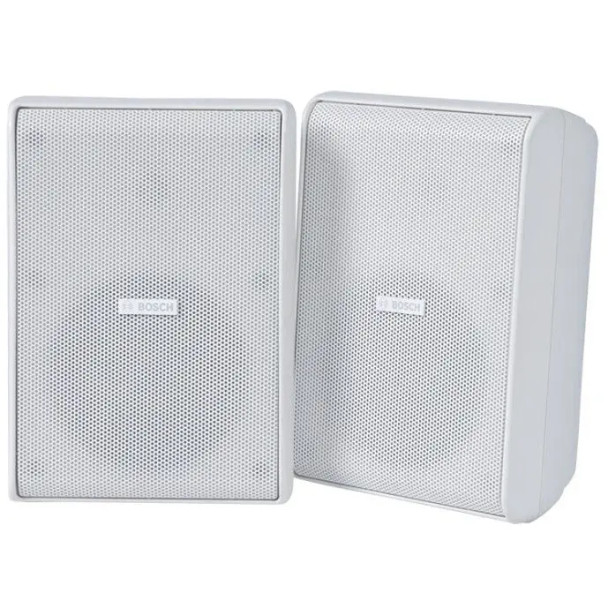

Bosch LB20-PC60EW-5L 75W IP65 5.25in Surface Mount Speaker

Bosch LB20-PC60EW-5L 75W IP65 5.25in Surface Mount Speaker

The Bosch LB20-PC60EW-5L is a high-performance two-way full-range surface mount speaker engineered for demanding indoor and outdoor audio applications. Featuring a powerful 5.25-inch long-throw woofer, this speaker delivers extended low-frequency performance down to 55 Hz with exceptional clarity and uniform dispersion. With 75W power handling and maximum SPL of 108 dB (114 dB peak), the LB20-PC60EW-5L provides clear, powerful sound delivery for background and foreground music, voice evacuation, paging, and sound reinforcement in diverse environments including restaurants, bars, retail spaces, fitness clubs, hospitality venues, theme parks, and leisure facilities.

Built to withstand extreme weather conditions, this speaker features IP65-rated protection and UL 94-5VB fire-rated ABS plastic construction for reliable outdoor operation. The integrated 60W transformer with 8-ohm pass-through offers installation flexibility, supporting power taps at 8W, 15W, 30W, or 60W for 70V systems. EN 54-24 and UL1480 certifications ensure compliance with safety and emergency voice evacuation standards, making it ideal for life-safety applications. The versatile U-bracket mounting system provides 80 degrees of rotation, enabling precise sound direction adjustment for optimal coverage in any installation scenario.

Key Features:

• Two-way full-range 5.25-inch speaker system with extended 55 Hz low-frequency response; delivers rich, full-spectrum audio quality for music, voice, and paging applications.
• 75W power handling with 108 dB maximum SPL (114 dB peak); provides powerful, clear sound delivery even in noisy environments and large spaces.
• IP65-rated weatherproof construction; ensures reliable operation in harsh outdoor conditions with protection against dust and water ingress.
• EN 54-24 and UL1480 certified; meets strict safety standards for emergency voice evacuation and sound reinforcement in life-safety applications.
• 60W transformer with multiple power taps and 8-ohm bypass; offers flexible installation options for 70V distributed audio systems.
• Versatile U-bracket with 80-degree rotation; enables precise sound direction adjustment for optimal coverage and listening experience.
• UL 94-5VB fire-rated ABS plastic housing; provides durable construction with enhanced fire safety for commercial installations.
