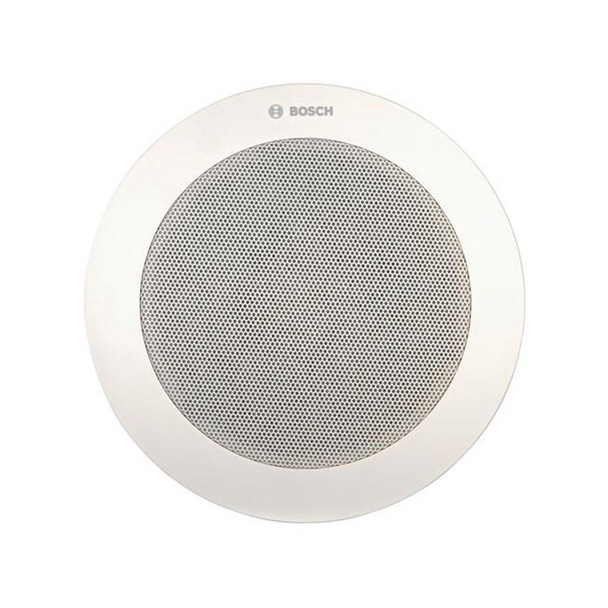

Bosch LC4-UC06E Ceiling Loudspeaker, 6W, Wide angle

Brand: Bosch
Part Number: LC4-UC06E
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
  • Bosch LC4-UC06E Ceiling Loudspeaker, 6W, Wide angle
  • Bosch LC4-UC06E Ceiling Loudspeaker, 6W, Wide angle
Technical Support Technical Support
3 Year Warranty 3 Year Warranty


Bosch LC4-UC06E Ceiling Loudspeaker, 6W, Wide angle

The LC4 Ceiling Loudspeaker Range can be used for a wide variety of ceiling environments. They provide excellent speech and music in indoor public address applications. New CosCone driver technology, used in this range, stands for delivering outstanding sound quality from a small sized unit.

It ensures a wide and equal spread of all octave frequencies and eliminates high‑frequency beaming. Fewer loudspeakers are needed to cover a given area, and the noticeable “fading” that can occur as a listener walks from one loudspeaker to another area is eliminated.

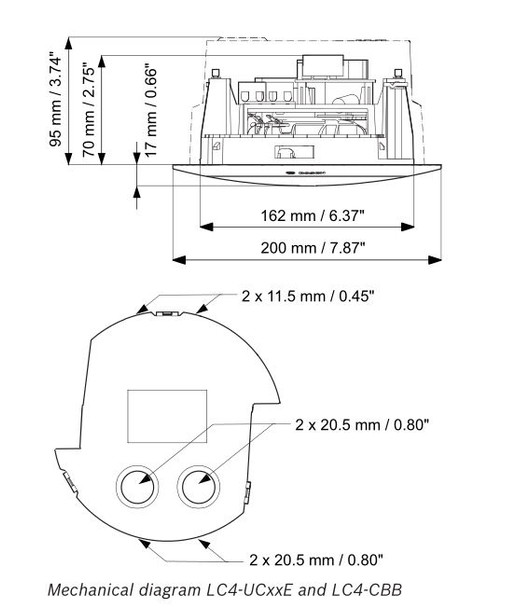

The LC4‑UCxxE ceiling loudspeaker is a light and compact unit with an unobtrusive, neutral designed front grille. The range offers a choice of three loudspeakers distinguished by input power of: 6 W, 12 W and 24 W with the same wide opening angle, ensuring a wide and equal spread of the important frequency octaves for speech intelligibility and music clarity. The LC4 range also includes a back‑box and metal fire‑dome.

Key Features:

  • Innovative CosCone full range driver
  • Excellent speech and music reproduction
  • Unrivalled opening angle for all octave frequencies
  • Paintable grille
  • EN 54‑24, UL2043, UL1480 certifie
Certifications and approvals

All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268‑5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration. The LC4 range has UL1480F certification listed for use in Fire Alarm and/or Emergency Communication Systems.


Additional Information

Alternative SKUs:
Audio Surveillance Type:
NDAA Compliance:
NDAA Compliant
3-year Manufacturer Warranty
