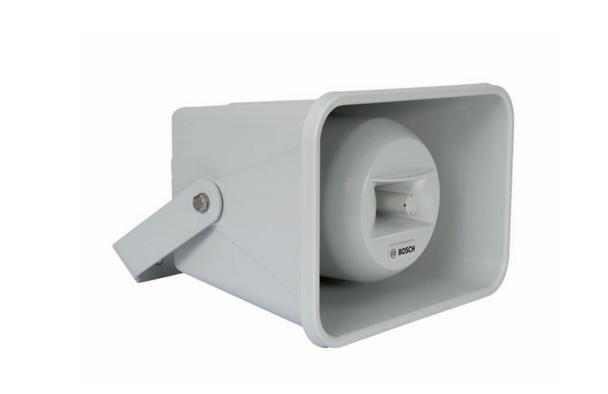

Bosch LH1-UC30E Outdoor IP Horn Speaker
The Bosch LH1-UC30E is a high-performance 30W horn speaker designed for professional outdoor applications. Featuring a unique two-way system with exceptional speech and music reproduction capabilities, this speaker delivers crystal-clear audio for sports grounds, stadiums, leisure parks, and public address systems.
Built with weather-resistant ABS housing and aluminum bracket finished in light grey (RAL 7035), the LH1-UC30E offers superior durability with IP66 protection rating. The speaker operates reliably in extreme temperatures from -13°F to 131°F (-25°C to 55°C) and features ceramic terminal blocks with thermal fuse protection for enhanced safety.
EN 54-24 certified for voice alarm systems, this horn speaker includes built-in fire protection ensuring system integrity is maintained even in emergency situations. The speaker supports both 70V and 100V line systems with multiple power taps (3.75W, 7.5W, 15W, 30W) for flexible installation options.
Key Features:
- 30W power rating with two-way system for superior audio quality
- IP66 weather protection for outdoor applications
- EN 54-24 certification for voice alarm systems
- Operating temperature range: -13°F to 131°F (-25°C to 55°C)
- Frequency response: 210 Hz to 20,000 Hz
- Built-in fire protection with ceramic terminal blocks
- Multiple power taps for 70V and 100V systems
- Durable ABS housing with aluminum bracket (RAL 7035)
Downloads
Popular Search
Additional Information
|
Audio Capability:
|
Two-way Audio
|
|
Dimensions:
|
10.04 x 14.56 x 13.93 in
|
|
Max Sound Pressure Level:
|
114 dB
|
|
Protection Code:
|
IP66
|
|
Watt:
|
30
|
