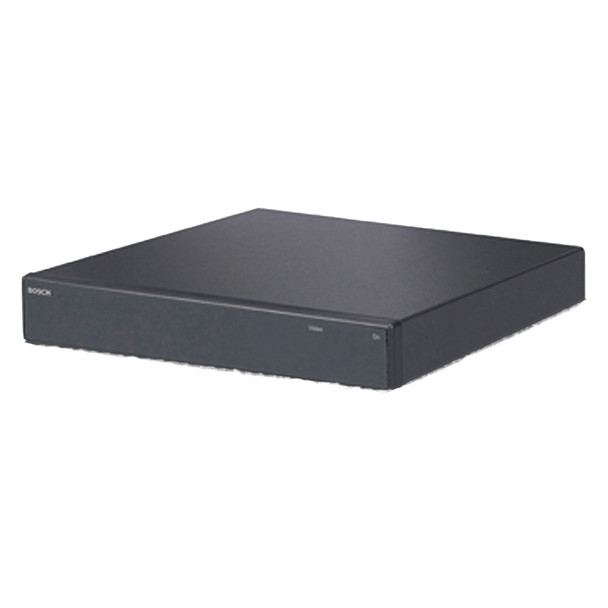

Bosch LTC 5231/90 Single Channel Video Distribution Amplifier

Bosch LTC 5231/90 Single Channel Video Distribution Amplifier

The LTC 5231/90 and LTC 5234/90 are video distribution amplifiers that provide multiple video outputs identical to the video input signal. Their ample bandwidth easily supports today's high-resolution video signals. A video-loss-detection feature is available for interfacing to external monitoring equipment.

The LTC 5231/90 and the LTC 5234/90 also support Bilinx technology, allowing bidirectional communication through the video cable to access and control Bilinx-enabled devices such as AutoDome® and Dinion® cameras. A maximum of two (2) different types of Bilinx controller models can communicate to a common Bilinx-capable camera. Contact a Bosch Security Systems Sales Representative regarding future product capabilities.

The LTC 5231/90 is a single-channel video distribution amplifier with four (4) video outputs for distribution to other video devices. A front panel LED indicates the presence of video. The LTC 5234/90 is a 4-channel video distribution amplifier. It has four (4) independent distribution amplifiers, each with one input and three outputs. Front panel LEDs for each distribution amplifier channel indicates the presence of video.

Key features of Bosch LTC 5231/90

• Video Distribution Amplifier
• Single Channel
• 1 input, 4 output, half rack
• 120/230 VAC, 50/60 Hz
• Compatible with NTSC/PAL video standards
• No user adjustments needed
• Supports Bilinx video signals
• Video presence indicators
• Video-Loss-Detection output
