Description

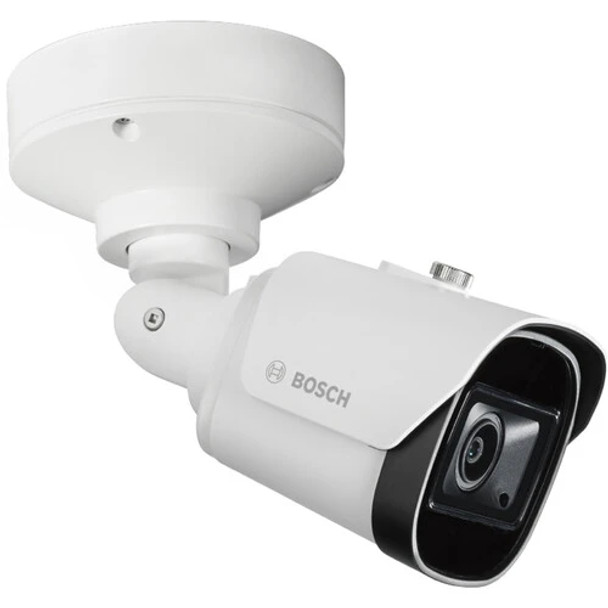

Bosch NBE-5704-AL 8MP Outdoor Bullet IP Security Camera with 3.2-10.5mm Lens and Built-In IR
The Bosch NBE-5704-AL is an 8MP outdoor bullet IP security camera designed for professional surveillance in demanding environments. Featuring a motorized 3.2-10.5mm P-iris lens, it provides a flexible horizontal field of view ranging from 105° to 31°, making it suitable for a wide range of monitoring applications. Equipped with Starlight technology, the camera delivers exceptional low-light performance, capturing detailed color images even in near-dark conditions. HDR technology enhances image clarity in high-contrast scenes, while the built-in intelligent IR illuminator provides night vision up to 45 meters (148 feet). The Intelligent Video Analytics Pro (IVA Pro) ensures reliable deep-learning-based detection and classification of people and vehicles, even in complex environments. With an IP66/IP67 weatherproof and IK10 impact-resistant housing, this camera is ideal for perimeter security, critical infrastructure, and public spaces where high-definition, reliable monitoring is essential.
Key Features:
- 8MP resolution; delivers ultra-high-definition imaging for detailed surveillance.
- 3.2-10.5mm motorized P-iris lens; provides an adjustable field of view from 105° to 31°.
- Built-in IR illumination; provides night vision up to 45 meters (148 feet) with adjustable intensity.
- Starlight technology; ensures superior low-light performance with enhanced color sensitivity.
- HDR technology; provides high dynamic range imaging for improved visibility in challenging lighting conditions.
- Intelligent Video Analytics Pro (IVA Pro); supports advanced object detection, tracking, and classification using deep learning.
- Electronic image stabilization (EIS); reduces motion blur caused by vibrations for stable video output.
- IP66/IP67 weatherproof and IK10 impact-resistant housing; offers maximum durability for outdoor installations.
- Dual microSD card support; allows for redundant edge storage, ensuring continuous video capture.
- PoE and DC power options; simplify installation with flexible power choices.
- NDAA compliant; meets government security requirements for federal installations.
- ONVIF compliant; ensures seamless integration with leading video management systems.
Downloads
Additional Information
Aperture:
|
F1.6
|
Camera Style:
|
Bullet
|
Compliance:
|
NDAA Compliant
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
IR cut filter
|
Dimensions:
|
148 mm x 97 mm (5.82 in x 3.82 in)
|
Durability:
|
Weather Resistant
Vandal Resistant
|
Environmental:
|
Outdoor
|
Iris:
|
P-iris
|
Lens Size:
|
3.2~10.5mm
|
Power Supply:
|
PoE (IEEE 802.3af)
PoE+ (IEEE802.3at)
12 VDC
24 VAC
|
Protection Code:
|
IP66
IP67
IK10
|
Resolution:
|
8MP (4K)
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Storage Humidity:
|
0% to 98%
|
Storage Temperature:
|
-30 °C to 70 °C (-22 °F to 158 °F)
|
Technology:
|
Network (IP)
|
