Description

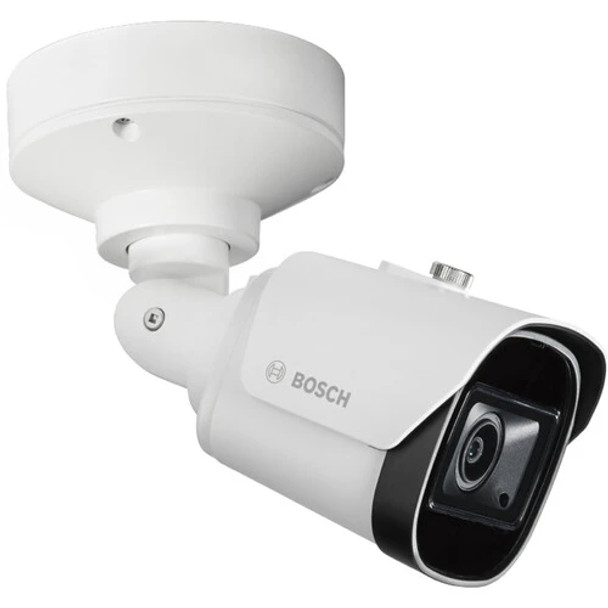

Bosch NBE-7702-ALXT 2MP Outdoor Bullet IP Security Camera with 10.5-47mm Lens and Built-In IR
The Bosch NBE-7702-ALXT is a 2MP outdoor bullet IP security camera designed for mission-critical surveillance applications in challenging environments. Featuring a motorized 10.5-47mm P-iris lens, it provides a flexible horizontal field of view ranging from 42° to 9°, allowing precise long-range monitoring. Equipped with Starlight X technology, the camera delivers exceptional low-light performance, capturing detailed color images even in near-dark conditions. HDR X technology ensures superior image quality in high-contrast scenes without motion blur. The camera supports Intelligent Video Analytics Pro (IVA Pro) with deep-learning-based object detection, tracking, and classification, making it highly reliable for perimeter security, traffic monitoring, and critical infrastructure protection. Its IP66/IP67 weatherproof and IK10 impact-resistant housing ensures durability in extreme weather conditions, while advanced smart IR illumination extends night vision capabilities up to 140 meters (459 feet).
Key Features:
- 2MP resolution; delivers high-definition imaging for detailed surveillance.
- 10.5-47mm motorized P-iris lens; provides an adjustable field of view from 42° to 9°.
- Starlight X technology; ensures superior low-light performance with enhanced color sensitivity.
- HDR X technology; provides high dynamic range imaging without motion blur for optimized visibility in challenging lighting conditions.
- IVA Pro analytics; supports advanced object detection, tracking, and classification using deep learning.
- Smart IR illumination; provides night vision up to 140 meters (459 feet) with adjustable intensity.
- Electronic image stabilization (EIS); reduces motion blur caused by vibrations for stable video output.
- IP66/IP67 weatherproof and IK10 impact-resistant housing; offers maximum durability for outdoor installations.
- Dual microSD card support; allows for redundant edge storage, ensuring continuous video capture.
- PoE and DC power options; simplify installation with flexible power choices.
- NDAA compliant; meets government security requirements for federal installations.
- ONVIF compliant; ensures seamless integration with leading video management systems.
Downloads
Additional Information
Aperture:
|
F1.35
F1.55
|
Camera Style:
|
Bullet
|
Compliance:
|
NDAA Compliant
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
IR cut filter
|
Dimensions:
|
148 mm x 115 mm (5.82 in x 4.52 in)
|
Durability:
|
Weather Resistant
Vandal Resistant
|
Environmental:
|
Outdoor
|
Iris:
|
P-iris
|
Lens Size:
|
10.5-47mm
|
Power Supply:
|
PoE (IEEE 802.3af)
PoE+ (IEEE802.3at)
24 VAC
12 to 26 VDC
|
Protection Code:
|
IP66
IP67
IP6K9K
IK10
|
Resolution:
|
2MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/1.8"
|
Sensor Type:
|
CMOS
|
Storage Humidity:
|
0% to 98%
|
Storage Temperature:
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
Technology:
|
Network (IP)
|
