Description

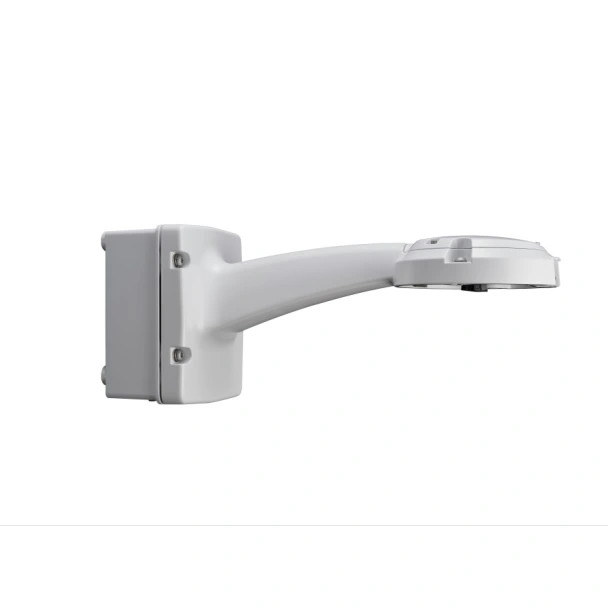

Bosch NDA-7100-PA0 Wall Arm and PSU for AD7100i (24VAC)
The Bosch NDA-7100-PA0 is a durable wall arm and power supply unit designed specifically for the AD7100i series. Built with a robust aluminum enclosure, this unit is IP66-rated to prevent dust and water ingress, ensuring reliable performance in harsh environments. Its IK10 impact rating provides superior protection against physical damage, making it ideal for outdoor security applications. Operating across a wide temperature range, it is engineered to support 24VAC power supply needs with high efficiency.
Key Features:
- Integrated wall arm and power supply; designed for AD7100i 24VAC applications
- Durable aluminum enclosure; ensures long-lasting protection in harsh environments
- IP66-rated; provides resistance against dust and water ingress
- IK10 impact rating; ensures high-level protection against physical damage
- Wide operating temperature range; functions reliably from -60°C to 60°C (-76°F to 140°F)
- 24VAC power output; delivers 3.15A, 50/60Hz (IEC 62638-1 Limited Power Source)
- Powder-coated white finish (RAL 9003); enhances durability and aesthetics
- Compact dimensions; 523.0 mm x 216.8 mm x 185.4 mm (20.6 in. x 8.5 in. x 7.3 in.) for easy installation
Popular Search
Additional Information
|
Dimensions:
|
523.0 mm x 216.8 mm x 185.4 mm(20.6 in. x 8.5 in. x 7.3 in.)
|
|
Environmental:
|
Outdoor
|
|
Material:
|
Aluminum
|
|
Mount Type:
|
Wall Mounts
|
