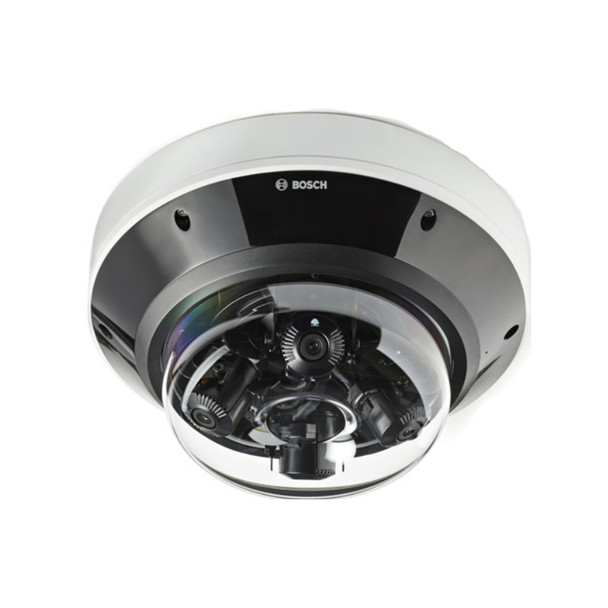

Bosch NDM-7702-AL 4x 3MP Outdoor Multi-sensor IP Security Camera, Arctic Temperature, Night Vision

Brand: Bosch
Part Number: NDM-7702-AL
Write a Review
  • Bosch NDM-7702-AL 4x 3MP Outdoor Multi-sensor IP Security Camera, Arctic Temperature, Night Vision
  • Bosch NDM-7702-AL 4x 3MP Outdoor Multi-sensor IP Security Camera, Arctic Temperature, Night Vision
  • Bosch NDM-7702-AL 4x 3MP Outdoor Multi-sensor IP Security Camera, Arctic Temperature, Night Vision
  • Bosch NDM-7702-AL 4x 3MP Outdoor Multi-sensor IP Security Camera, Arctic Temperature, Night Vision

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.264, MJPEG,
  • Field of View (Horizontal) : 81.9°Field of View 39.5°Field of View
  • Max. FPS and Resolution : 30fps at 3MP
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 3.7~7.7mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Max. Storage Capacity : 2 TB Storage Capacity
  • Protection Code : IP66 IK10 NEMA 4X
  • Color : White
  • Material : Poly-carbonate (PC) Aluminum
  • Environmental : Outdoor Indoor
  • Sensor Size : 1/2.7"
  • Aperture : F1.9
  • Audio Support : Built-in Microphone


Bosch NDM-7702-AL 4x 3MP Outdoor Multi-sensor IP Security Camera, Arctic Temperature, Night Vision

The FLEXIDOME multi 7000i camera is built for high- quality performance, featuring four independent imagers with motorized zoom/focus lenses. It helps to simplify installation and lower costs while maintaining flexibility in coverage. With four scenes simultaneously in a single camera, it is perfect for wide area coverage, traffic intersections and building corners. When the lenses are tilted at the right angle, the camera can even cover an area up to full 360°. Additionally, the zoom capability allows the camera to obtain detailed coverage for more distant areas.

Key Features:

  • Easy and flexible installation with four motorized zoom/focus lenses
  • High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
  • Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
  • Multi-imager fixed dome 12MP 4x 3MP, 30 fps
  • 3.7-7.7mm AVF lens,
  • Weatherproof IP66,
  • Vandal Proof IK10,
  • Integrated Microphone,
  • IVA, Camera Trainer,
  • Integrated IR up to 98ft.
12-megapixel multi-directional overviews

Four independent 3-megapixel imagers with separate remote zoom and focus lenses capture very high- quality images with a total resolution of 12 megapixels.

Each of the four imagers can be set-up flexibly with 3- axis movement along a circular track. This enables surround coverage, capturing detailed images from every angle for comprehensive video coverage with four separate views from a single IP address.

High Dynamic Range

The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.

The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.

H.265 high-efficiency video encoding

The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.

Two-way audio and built-in microphone

Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Alternatively, there is an integrated microphone to capture crisp and clear audio. By using the integrated or external microphone, audio detection can be used to generate alarms to alert the security operator quicker and act more proactively. If required by local laws, the microphone can be blocked via a secure license key.

Intelligent Video Analytics

The camera uses the latest generation of Bosch Intelligent Video Analytics (IVA). Specifically designed for the most demanding environments. It is extremely resistant to false triggers caused by challenging environments with snow, wind (moving trees), rain, hail, and water reflections. By using the zoom function of the lens, the camera can provide automatic person detection over distances up to 130 m / 430 ft.

The system reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Intelligent Video Analytics also adds sense and structure to your video by adding metadata. Calibration is quick and easy - just enter the height of the camera. The internal gyro/accelerometer sensors provide the rest of the information to precisely calibrate the video analytics for each imager. The next step in video analytics is taken with the incorporation of machine learning capabilities. With Camera Trainer you can tailor the built-in Intelligent Video Analytics to detect new user-defined moving or stationary objects and situations, or any subsequent changes.

Scene modes

Multiple configurable modes are provided with the best settings for a variety of applications. In one click fully optimized image settings can be selected to suit the conditions. Different scene modes can be selected for different situations such as sodium lighting, fast moving objects, or dark environments.

Resists rain, dust, and tampering with reliable operation across a wide temperature range

Suitable for indoor and outdoor usage. The robust design of the camera is rated to IP66 and IK10 standards, safeguarding the camera against rain and dust while also offering protection against vandalism and tampering.

The camera can operate in a wide ambient temperature range between -50 °C up to +55 °C / -58 °F up to 131 °F.

Easy installation

With the multi-imager camera, it is only necessary to install one camera, pull one cable, configure one IP address, and acquire one video management software (VMS) license (applicable for most common VMS, including BVMS 11.1 or higher), while having the benefit of using four cameras. The mechanical design follows the Bosch installation philosophy by using an installation mount plate and easy cable management.

Power can be supplied via Power-over-Ethernet. With this configuration, only a single cable connection is required to view, power, and control the camera. Using PoE makes installation easier and more cost- effective, as cameras do not require a local power source.

Modular accessories

A full line of modular accessories is available that allows a consistent design across different cameras and a wide range of installation possibilities. Available options include wall or pipe mount, a surveillance cabinet with power and fiber optic options, and an in- ceiling mounting kit. There is also a conduit adapter available for installations on concrete walls or ceilings.


Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at with any design questions.

Additional Information

Alarm Input:
1 Channel
Alarm Output:
1 Channel
Audio Detection
Audio Capability:
Two-way Audio
Audio Compression:
G.711 L16 AAC-LC
Audio Input:
1x Channel
Audio Output:
1x Channel
Audio Support:
Built-in Microphone
Built-in Features:
Built-in Analytics
Camera Style:
Compatible Integration (API):
ONVIF Profile S ONVIF Profile G ONVIF Profile T
NDAA Compliant
H.265 H.264 MJPEG
Detect (ft):

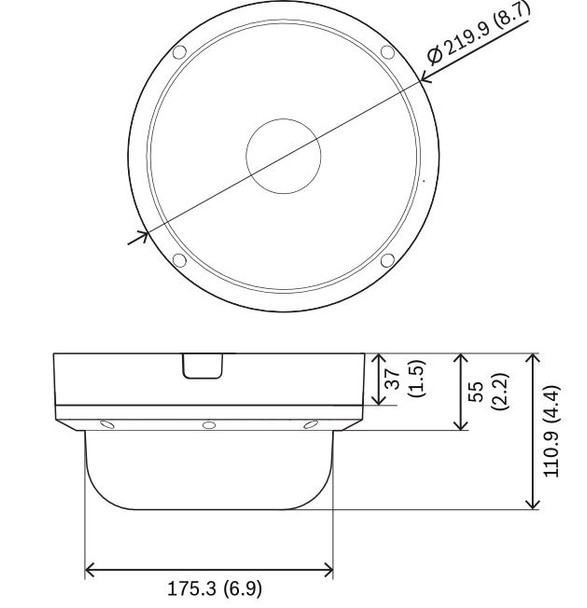

220 x 111 mm (8.7 x 4.4 in)
Vandal Proof Weatherproof
Outdoor Indoor
Field of View (Horizontal):
81.9 39.5
Identify (ft):
Auto (DC-iris)
Lens Size:
Lens Type:
Motorized (Automatic Zoom) Lens
Manufacturer Website:
Poly-carbonate (PC) Aluminum
Max Power Consumption:
16 Watts
Max. FPS and Resolution:
30fps at 3MP
Max. Storage Capacity:
2 TB
Minimum Illumination (B/W):
0.012 Lux
Minimum Illumination (Color):
0.091 Lux
Surface Mount
Network Interface:
1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
Night Vision Range (ft):
Night Vision Type:
Night Vision (IR)
Noise Reduction:
Observe (ft):
Operating Temperature:
-50 °C to 55 °C (-58 °F to 131 °F)
Power Supply:
24 VAC PoE+ (IEEE802.3at Class 4)
Product Series:
Bosch FLEXIDOME 7000 Series
Protection Code:
Recognize (ft):
12MP (4K)
S/N Ratio:
>55 dB
SD Card Support:
SD Card Supported
Sensor Size:
Sensor Type:
Specialized Camera Feature:
Storage Temperature:
-40 °C to 70 °C (-40 °F to 158 °F)
Network (IP)
USB Interface:
1x USB-C
3-year Manufacturer Warranty
Wide Dynamic Range (WDR):
True WDR 120dB
