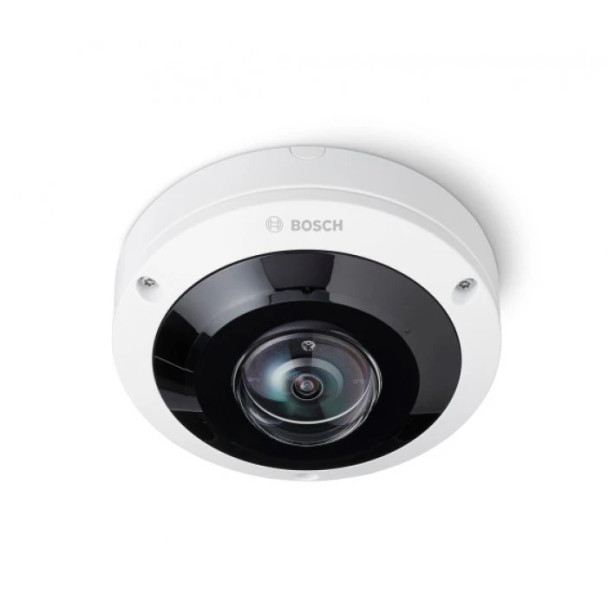

Bosch NDS-5703-F360LE 6MP Night Vision Outdoor Fisheye IP Security Camera with 360-Degree Lens, FLEXIDOME panoramic 5100i
The NDS-5703-F360LE is a discreet and aesthetic panoramic camera for indoor and outdoor surveillance.
Its stereographic, panoramic lens provides full 360° coverage without blind spots, ideal for surveillance applications that require wide area coverage in a single, detailed view. The camera offers full situational awareness and simultaneous high-resolution zoomedin images. The high-end system on chip (SoC) provides dewarping for easy integration and flexible viewing and recording.
Built-in Intelligent Video Analytics enriches full situational awareness and triggers relevant alerts. Intelligent Audio Analytics gives meaning to the sounds it captures.
The camera's integrated IR provides the flexibility to control IR intensity in multiple zones to prevent IR saturation. Additionally, with its wide range of inputs and outputs, such as Alarm and HDMI, it can be used for any application. The camera has an IK10 and IP66 design to protect itself against vandalism and all weather conditions.
Key Features:
- 360° panoramic overview in 6MP resolution without blind spots
- Optimized for all lighting conditions with integrated IR and High Dynamic Range
- Edge or client-side dewarping for easy integration and flexible viewing and recording
- Built-in Intelligent Video Analytics and Intelligent Audio Analytics to trigger relevant alerts and quickly retrieve data
- Compact design protected against vandalism and all weather conditions
Downloads
Compatible products
Additional Information
|
Alternative SKUs:
|
F.01U.385.630
|
|
Angle of View:
|
360 Degree
|
|
Aperture:
|
F2.0
|
|
Audio Compression:
|
G.711
L16
AAC-LC
|
|
Camera Style:
|
Multi-sensor
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile M
ONVIF Profile S
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
MJPEG
H.265
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
93
|
|
Dimensions:
|
148 x 70 mm (5.83 x 2.76 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
182
|
|
Identify (ft):
|
7
|
|
Iris:
|
Fixed Iris
|
|
Lens Mount:
|
Board Mounted
|
|
Lens Size:
|
1.155mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://www.boschsecurity.com/us/en/
|
|
Max Power Consumption:
|
11.4 Watts
|
|
Minimum Illumination (B/W):
|
0.008 Lux
|
|
Minimum Illumination (Color):
|
0.099 Lux
|
|
Mount Type:
|
Ceiling Mount
|
|
Mounting:
|
Surface Mount
|
|
Network Interface:
|
1x RJ-45
|
|
Night Vision Range (ft):
|
66
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Observe (ft):
|
38
|
|
Power Supply:
|
PoE (IEEE 802.3af)
24 VAC
12 VDC
|
|
Product Series:
|
Bosch FLEXIDOME PANORAMIC 5100i Series
|
|
Protection Code:
|
IK10
IP66
NEMA 4X
|
|
Recognize (ft):
|
18
|
|
Resolution:
|
6MP
|
|
S/N Ratio:
|
>50 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x Micro HDMI
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
